Technical details
| DisplayPort version |
1.2 |
| Panel type |
SPVA |
Display
| Display type |
LED |
| Vertical scan range |
48 - 75 Hz |
| Active display area (W x H) |
1209.6 x 680.4 mm |
| Color gamut |
72% |
| HD type |
Full HD |
| Native aspect ratio |
16:9 |
Ports & interfaces
| Infrared data port |
Y |
| DVI port |
Y |
| RS-232C |
Y |
| HDMI ports quantity |
2 |
| Component video (YPbPr/YCbCr) in |
1 |
| VGA (D-Sub) input ports |
1 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
1 |
Other features
| Dot clock scanning frequency |
148.5 MHz |
| Power consumption (max) |
495 W |
Design
| Bezel width (top) |
9.3 mm |
| Bezel width (bottom) |
6.5 mm |
Computer system
| Memory clock speed |
1866 MHz |
| User memory |
6 GB |
| Computer system |
Y |
| Image formats supported |
JPG, PNG |
| Internal storage capacity |
8 GB |
| Internal memory |
1.5 GB |
| Processor frequency |
1 GHz |
Power
| Power consumption (sleep) |
0.5 W |
| Power consumption (off) |
0.5 W |
Packaging data
| Handheld remote control |
Y |
| Batteries included |
Y |
| Quick start guide |
Y |
| Warranty card |
Y |
Performance
| Operating hours (hours/days) |
24/7 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Energy efficiency compliance |
D |
| Display scan frequency (horizontal) |
30 - 81 kHz |
| Ethernet LAN connection |
Y |

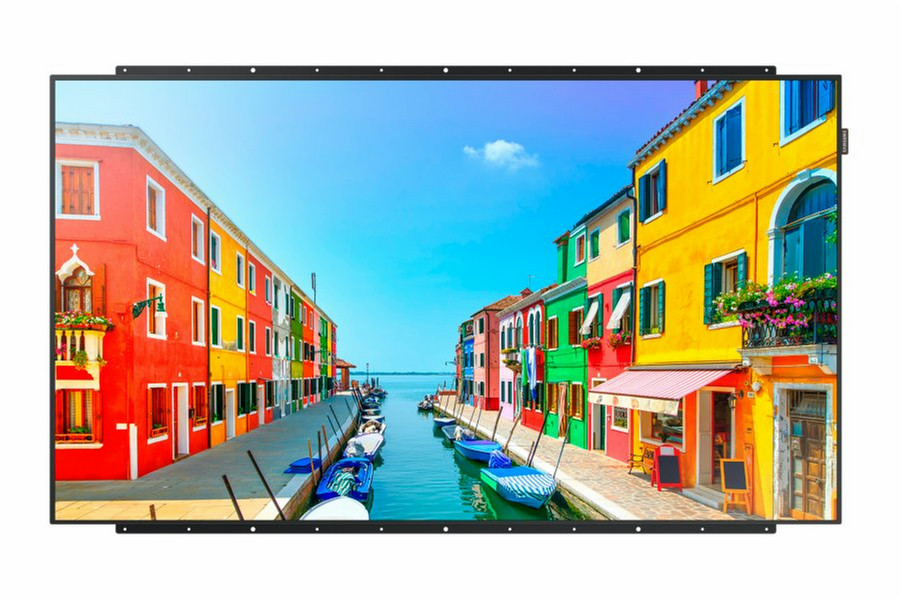

139.7 cm (55 ") LED Full HD 1920x1080, 2500cd/m2, 16.7M, 5000:1, 6ms, 72%, 300W, 22.4kg
Ability to convey business messaging with high brightness and excellent visibility
Deliver promotional messaging vividly with excellent visibility
Draw more visitors to your retail business by effectively delivering promotional messaging with excellent visibility. OMD Series SMART Signage features2,500-nit high brightness and 5000:1 contrast ratio for superb visibility in various lighting environments. Even customers who are wearing polarized sunglasses can view messages with outstanding clarity and brightness, without the display-blindness effect typically experienced with LCD displays.
Optimized brightness control with Auto brightness sensor and increased energy efficiency
Display content with optimal brightness and cost-efficiency
Optimize brightness control while reducing display operating expenses and power consumption with an automatic brightness sensor. You can customize the maximum and minimum brightness within a range of 350-nit to 2,500-nit brightness to complement any environment and control expenses, while extending the life of the monitor.
Durability (High heat resistance) +24/7 Usage
Rely on strong 24/7 durability in various outdoor environments
Present business messaging 24/7 even when the display is exposed to sunlightdirectly and indirectly for reliable around-the-clock operation.OMD Series SMART Signage is mechanically designed and has undergone internal testing to endure heat with a panel that can withstand up to 110°C (230°F) temperatures.
Clutter-free installation and management through SSSP
Experience easy management and clutter-free installation with SSSP
LeverageSamsung’s industry-leading 2nd Generation SSSP and a powerful quad-core processor with SoC technology for outstanding performance.2nd Generation SSSP has advanced MagicInfo® Premium S all-in-one embedded content management solution that eliminates the need for a separate PC or media player. The result is an uncluttered and simplified digital signage configuration that delivers rich media content, enhanced operational efficiency and lower TCO.
Easy, professional display management with mobile devices and MagicInfo server
Easily and professionally manage content from a mobile device
Manage content conveniently from a mobile device with built-in Wi-Fi and MagicInfo®solution, even when the displays are installed in difficult-to-access locations. MagicInfo enables professional management of multiple displays, and theMagicInfo Mobile application can be used on a tablet or other mobile device to easily deliver content to displays or to update the displays’ templates or content.
Sophisticated design
Deliver engaging content with a very visible, sleek and exceptional design
Impress customers and reduce viewing distractions with a sophisticated design featuring a narrow 9.3 mm bezel and slim depththat offers an elegant appearance. Slim bezels allow OMD Series displays to be used in seamless video walls for stunning window and wall displays. And with slim-depth panels these stylish displays deliver efficient use of space while reducing separate housing design costs.
Complete product or kit-type product
Choose the ideal display type for any business environment
Take advantage of a variety of form factors to suit your display environment. As a standalone kit-type panel, the OMD-K is designed for specialized use in various customized housings to serve a wide range of configuration and environmental needs. OMD-W is an aesthetically pleasing standalone panel that is suitable for in-window store display usage with a backcover that hides its array of connectivity ports and openings.Both OMD-K and OMD-W models are available in various sizes (46”, 55” and 75”)for configuration flexibility.
