Display
| Vertical scan range |
48 - 75 Hz |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Active display area (W x H) |
1209.6 x 680.4 mm |
| Color gamut |
72% |
| HD type |
Full HD |
| Display type |
LED |
Computer system
| Graphics adapter Open GL support |
Y |
| L2 cache |
32 KB |
| Memory clock speed |
1866 MHz |
| Computer system |
Y |
| Image formats supported |
PNG |
| Processor cores |
4 |
| Internal storage capacity |
8 GB |
| Internal memory |
2.5 GB |
| Processor frequency |
1.3 GHz |
Ports & interfaces
| DVI port |
Y |
| DVI-I ports quantity |
1 |
| RS-232C |
Y |
| HDMI ports quantity |
2 |
| DisplayPorts quantity |
2 |
| USB ports quantity |
2 |
| USB version |
2.0 |
Design
| Bezel width (top) |
6.9 mm |
| Bezel width (bottom) |
6.9 mm |
Power
| Power consumption (sleep) |
0.5 W |
| Power consumption (off) |
0.5 W |
Performance
| Multi-display supported |
N |
| TV tuner integrated |
N |
| HDCP |
Y |
| Operating hours (hours/days) |
24/7 |
| On Screen Display (OSD) |
Y |
Technical details
| Audio out (Mini jack) |
1 |
| Audio in (mini jack) |
1 |
| LED backlighting type |
Edge-LED |
Packaging data
| Handheld remote control |
Y |
| Batteries included |
Y |
| Quick start guide |
Y |
| Warranty card |
Y |
Additionally
| Display scan frequency (horizontal) |
30 - 81 kHz |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Energy efficiency compliance |
A |

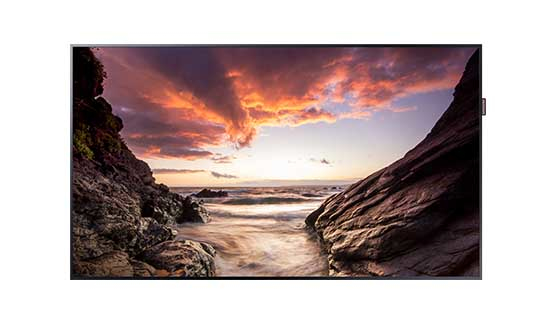

139.7 cm (55 ") , 1920 x 1080, 8ms, 500 nit, EdgeLED, 5000:1, 20 W, HDMI x 2, USB 2.0 x 2, 100 - 240 V, 50/60 Hz, 16.3 kg, Black
Premium TIZEN-powered displays built to handle any business need in a slim, captivating design
Discover displays that break the previous limits of slim design
Boasting of the slimmest depth design in the industry (29.9mm), Samsung’s new PHF and PMF Series standalone displays provide a compact, but strong signage solution for environments limited by space or configuration. Available in a range of sizes (43-, 49- and 55-inch models available for both PHF and PMF signage, with an additional 32-inch model available for the PMF Series), these standalone displays feature a narrow-bezel configuration to further maintain viewers’ focus aimed at on-screen content.
Unlock easier and more flexible control due to a centralized infrared receiver
The standalone displays’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. All models can receive the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.
Bring an end to unwanted glare and always be assured of high visibility and readability
Equipped with a non-glare frontal panel, the PHF and PMF Series displays reduce natural and ambient light interference to ensure continuous readability in any location. Image visibility and information readability are deemed to be very high, because it is less reflective under light or sunlight, which poses no issues when used with QSR menu boards, or airport flight schedule boards with ample natural light.
Put your worries to rest knowing that your display is protected from a range of environmental conditions
All of Samsung’s new PMF and PHF standalone displays are IP5x certified, signifying their dust-resistant design and ability to withstand a range of environmental conditions.
The certification alleviates concerns about dust accumulating on displays installed on subway trains or on external platforms. Customers can conveniently use this IP5x certified display without needing to prepare additional enclosure in dusty places. Uninterrupted, 24/7 content delivery is always assured regardless of surrounding natural or interactive conditions.
