Performance
| Supported network protocols |
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, ONVIF |
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Video input channels |
64 |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Storage
| Number of hard drives supported |
8 |
| Hard drive interface |
Serial ATA |
| Total installed storage capacity |
6000 GB |
Power
| Power consumption (max) |
170 W |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |

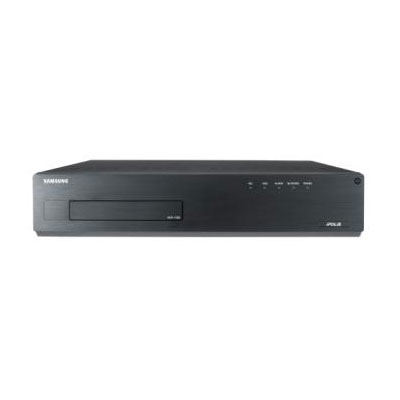

64CH 100Mbps Network Video Recorder, 6TB
<b>High Performance Network Video Recorder (NVR Recorder)</b>
The SRN-1000 is a intuitive Network Video Recorder (NVR Recorder) that allows you to continuously build upon and develop your new or existing security system into a scalable solution.The SRN-1000 is capable of recording 100Mbps of video bandwidth and up to 64 cameras. It supports a wide range of resolutions from VGA to 5 megapixel in H.264, MPEG4 and MJPEG formats. The SRN-1000 provides maximum flexibility in storage with a built in 1TB HDD, a maximum of 8 internal HDDs & support for 2 external storage expansion units (SVS-5E). This allows for a maximum attached storage of 48TB per SRN-1000.
- 100 Mbps network camera recording
- H.264, MPEG-4 & MJPEG Codec multiple
- 5 Megapixel VGA Resolution Support
- Max 8 HDDs Internal
- camera
- Easy Installation
- Various Event Record & Search function (Alarm, MD, VA)
- UPnP (Auto Port Forwarding)
- Support Multi-stream Cameras and Encoders
- linux
- Embedded System
- recording Onvif Device Support
