Technical details
| Digital Living Network Alliance (DLNA) certified |
Y |
| Bass reflex |
Y |
| Amplifier class |
D |
| Universal Plug and Play (UPnP) |
Y |
| Clock function |
Y |
| MP3 playback |
Y |
| Alarm function |
Y |
| Frequency band |
2.4 - 5 GHz |
Audio
| Equalizer modes |
Rock, Pop, Jazz, Flat, Classic |
| Equalizer |
Y |
Radio
| PLL synthesizer |
N |
| Radio Data System (RDS) |
Y |
| DAB III band range |
174 - 240 MHz |
| RDS features |
RT, PTY, PS, CT |
| Supported radio bands |
FM, DAB+ |
| Preset stations quantity |
15 |
| FM band range |
87.5 - 108 MHz |
Ports & interfaces
| Headphone outputs |
1 |
| AUX in |
Y |
| Line-out |
Y |
| DC-in jack |
Y |
| USB charging port |
Y |
Clock
| Sleep timer |
Y |
| Alarm clock |
Y |
| Snooze function |
Y |
| Integrated clock |
Y |
| Buzzer |
Y |
Display
| Display type |
TFT |
| Built-in display |
Y |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN connection |
Y |
| Radio |
Internet |
| Ethernet LAN (RJ-45) ports quantity |
1 |

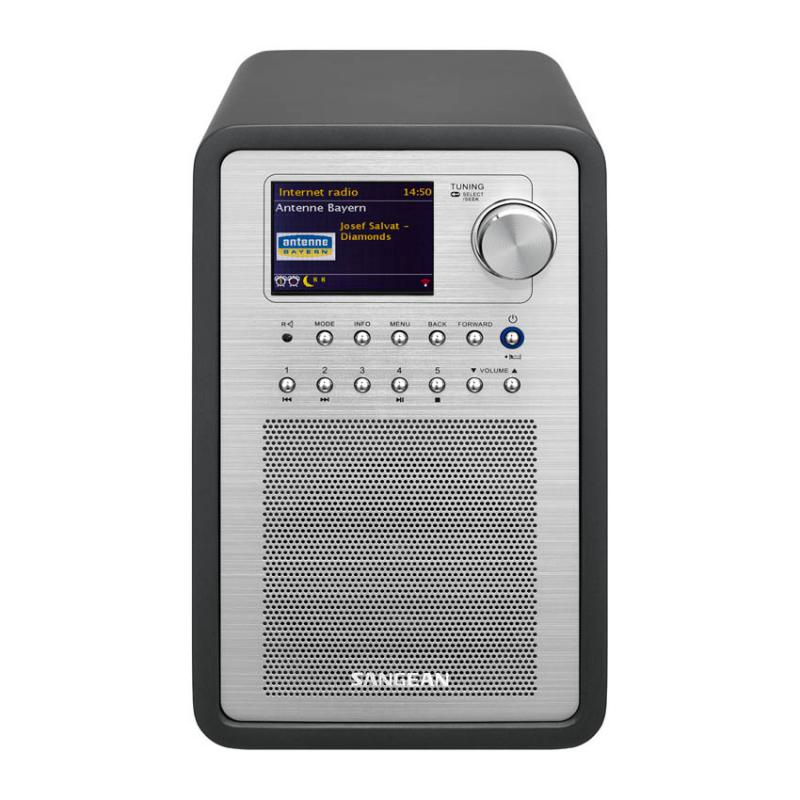

WFR-70 Internet Radio / DAB+ / FM-RDS / USB / Network Music Player
- High resolution 2.4" colour TFT LCD display
- Internet radio (over 15,000 stations) / DAB+ / FM-RDS waveband
- 15 station presets (5 iRadio, 5 DAB+, 5 FM)
- Information display for service data
- Menu - selection of major functions
- Easy to control playback from room to room via UNDOK™ app
- Control Spotify Connect music streaming via the Spotify or the UNDOK™ apps
- Stream your favourite music using the UNDOK™ app via your smartphone or tablet
- USB MP3 playback
- MP3, AAC + and WMA compatible
- Network music player
- Plays music stored on your computer
- Search by country, genre and my favourite radios
- Plug and play
- UPnP / DMR music streaming (DLNA 1.5 compliant)
- Audio EQ: Flat / Jazz / Rock / Movie / Classic / Pop / News / My EQ (custom bass and treble control)
- Update the clock automatically via network, DAB or FM RDS-CT
- 2 alarm timer by DAB / FM / Internet radio or buzzer
- Sleep timer
- Snooze function
- Supports dual frequency 5 GHz / 2.4 GHz Wi-Fi routers
- Built-in Wi-Fi dual-band 5 GHz / 2.4 GHz antenna
- Auxiliary input for additional audio sources
- Ethernet port for wired connection to home network
- R-ch speaker output socket connection for audio amplified speaker system (our accessory SP-40 slave speaker is compatible to the device for superior stereo sound)
- I/O jacks: DC in, Aux-in, R-ch. speaker output, Subwoofer Line-out, headphone and USB A type 5V / 1A socket for charging mobile phone (on Standby Mode) and playback
- The UNDOK™ App is available for Android and iOS. You can easily control every SmartLink device from your smartphone or tablet with our full function UNDOK™ App to stream your favorite music or station. Download and install free UNDOK™ App simply from the Apple iTunes App store or Android Google Play store to control your music now.
