Ports & interfaces
| PCI Express slots version |
2.0 |
| External mini-SAS ports |
2 |
| Host interface |
PCI Express x8 |
Performance
| Internal memory type |
DDR2 |
| Memory clock speed |
800 MHz |
| SSD support |
N |
| Processor frequency |
800 MHz |
| Internal memory |
512 MB |
System requirements
| Mac operating systems supported |
Mac OS X 10.7 Lion, Mac OS X 10.6 Snow Leopard, Mac OS X 10.5 Leopard, Mac OS X 10.4 Tiger |
PCIe 2.0 x8, SAS/SATA 6G, 512 MB

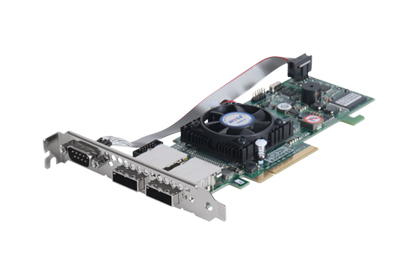

The HA-ARC-ARC1223X high-performance PCIe 2.0 x8 to SAS RAID host adapters can provide up to 8 SAS/SATA 6G devices per ports. Based on the same RAID kernel of field-proven external RAID adapters and RAID subsystem, HA-ARC-ARC1882X is widely compatible and supported in Windows, MAC, Linux, VMware, FreeBSD and Solaris. Applications that benefit most features from these controllers include server RAID solutions, web servers, supercomputing, near-line backup, server virtualization, security systems and streaming applications.
- Up to 4 drives per mini-SAS (SFF-8088) port, total 8 drives supported.
- 800MHz RAID on Chip I/O processor with SAS controller.
- 512MB on-board DDR2-800 SDRAM with ECC with write-through or write-back cache support.
- Low-profile supported.
- Multi-adapter support for large storage requirements.
- Supports RAID 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk or JBOD.
- Multiple RAID set supported.
- Online RAID level/stripe size migration, online capacity expansion and RAID level migration simultaneously.
- Instant availability and background initialization.
- NVRAM for RAID configuration & transaction log.
- Redundant flash image for adapter availability.
- SMTP support for email notification.
- SNMP support for remote manager.
- Field-upgradeable firmware in flash ROM.
- Web browser-based storage manager via Http proxy server for all operating systems.
- Optional backup battrey module, BBM, support (AC-SAN-1223XBBM).
- Supported OS:
- Windows 7/2008/Vista/XP/2003
- Linux
- FreeBSD
- VMware
- Solaris 10/11 x86/x86_64
- Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x
