Other features
| Special features |
4-pin ATX 12V |
| Graphics controller |
ATI Radeon HD 3000 |
Internal I/O
| Number of EATX power connectors |
2 |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
| Power fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Number of Parallel ATA connectors |
1 |
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
6 |
| Number of chassis fan connectors |
3 |
Back panel I/O ports
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
1 |
Performance
| Audio system |
Realtek ALC662 HD |
| Motherboard southbridge |
AMD SB710 |
| Component for |
PC |
Graphics
| Graphics adapter family |
AMD |
| On-board graphics adapter |
Y |
Memory
| Non-ECC |
Y |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
AMI |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI slots |
2 |
Additionally
| Dual-link DVI |
N |
| Chipset |
AMD 760G |
| Ethernet LAN (RJ-45) ports quantity |
1 |

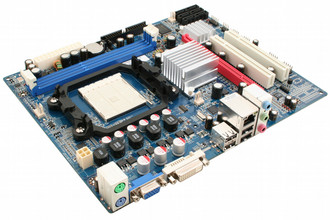

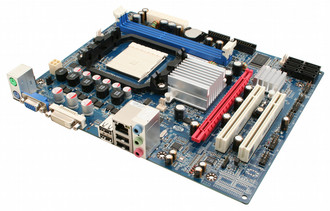

PI-AM3RS760G2, Pure Innovation 760G: AMD Socket AM3, AMD™ 760G + AMD™SB710, 8 GB Max., 2x PCI, ATI Radeon HD 3000, Realtek ALC662 HD Audio (6 ch), Micro-ATX
The Sapphire PURE Innovation 760G AM3 is designed for AMD new Phenom II™ / Athlon II™ AM3 true quad-core/ triple-core/ dual-core processors and next generation graphics with high speed DDR3 DRAM module. Performance, scalability, and personalization are coupled with an innovative and efficient design incorporating ATI Hybrid CrossFireX technologies to increase at least 45% performance than onboard VGA. The Sapphire PURE Innovation 760G AM3 based on ATI Radeon™ HD 3000 Graphics enables an exceptionally power-efficient platform at an incredible value. Bringing features and performance that enrich what you see and do, including a superior HD video experience that transforms your mainstream PC into a digital media powerhouse. Build your dream PC. Start with a Sapphire PURE Innovation 760G AM3 motherboard.
