Memory
| Memory channels |
Dual |
| Non-ECC |
Y |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
Internal I/O
| Front panel audio connector |
Y |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
| Number of SATA II connectors |
4 |
| TPM connector |
Y |
| Power fan connector |
Y |
| Number of Parallel ATA connectors |
1 |
| S/PDIF out connector |
Y |
| USB 2.0 connectors |
2 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Graphics
| Graphics adapter family |
AMD |
| On-board graphics adapter |
Y |
Back panel I/O ports
| VGA (D-Sub) ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
1 |
| HDMI ports quantity |
1 |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x16 slots |
1 |
Performance
| Component for |
PC |
| Audio system |
VIA VT1708S |
Other features
| Controller interface type |
AMD SB710 |
Additionally
| Chipset |
AMD 785G |
| Graphics |
Radeon HD 4200 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
IPC-AM3DD785G, AMD 785G+SB710, AM3, DDR3, SATAII, USB 2.0, PCI-E, ATI Radeon HD 4200, Gigabit Ethernet, micro ATX

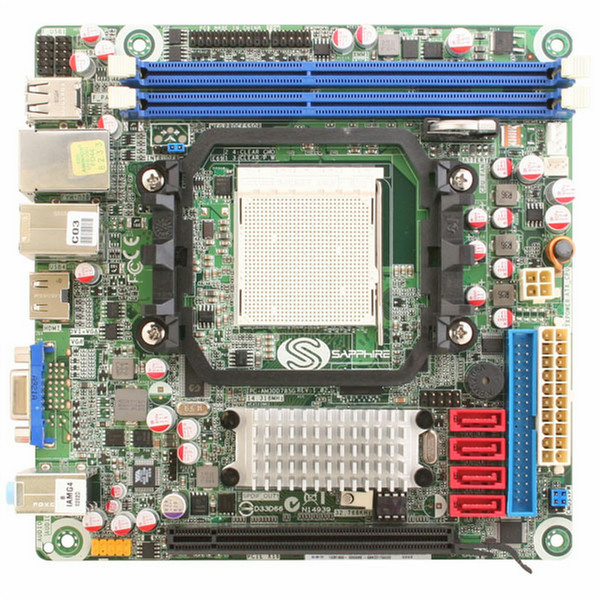

Sapphire IPC-AM3DD785G is Mini-iTX motherboards designed with rich functionality and reliable performance in a small footprint that measure just 170 x 170 mm. The highly integrated platforms features low power consumption of less than 100 Watts and have one basic PCI-E X16 expansion slot for graphics card. They’re ideal platforms for fast-emerging markets in which compact size and power-efficiency are required, such as information station kiosks, POS, lottery machines, gaming systems, factory automation, compact embedded Box IPCs, Wall-mount systems, 2U~4U Rack-mount systems, SBC systems, Digital Signage, and many others.
<b>AMD Phenom II AM3 Quad-Core Processors with True Quad-Core Technology</b>
- Smoother faster experience, even when running complex software application with native;
- Multi-Core Technology;
- Scaled performance to conserve PC power with HyperTransport® 3.0 Technology;
- Hear your music, not your PC with AMD PowerNow! ™ Technology (Cool’n’Quiet™ Technology);
- Prevent the spread of certain viruses and strengthen your network integrity with Enhanced Virus Protection (EVP);
- With DDR3 memory controller to expend memory bandwidth and upgrade higher speed.
<b>AMD 785G Chipset: Backbone of the Performance Platform</b>
AMD HD4200 redefine the Way You Play. Enjoy awesome gaming performance for the mainstream PC with stunning visual effects and dynamic interactivity with Microsoft DirectX 10.1. ATI Stream technology enables AMD graphics processors, working in concert with AMD Processors, to accelerate many applications beyond just graphics. This enables superior balanced platforms capable of running demanding computing tasks fast. Get a smooth and amazingly visual PC experience for Microsoft Windows 7, with support for features such as “Aero Shake”, “Aero Glass”, “Transparent Windows” and more!
<b>Energy Smart</b>
ATI PowerPlay and AMD PowerNow 3.0 with Cool n’ Quiet technologies give you maximum performance when you need it, and save power when you don’t, while delivering a superior “Green PC” experience.
