Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
Realtek ALC662 |
Internal I/O
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
6 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Other features
| RAID controller type |
SATA2 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Memory
| Number of memory slots |
4 |
| Maximum internal memory |
16 GB |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Chipset |
AMD 780V |
| Ethernet LAN (RJ-45) ports quantity |
1 |

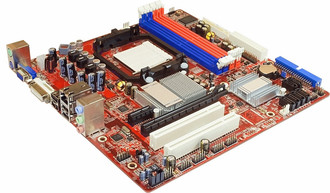

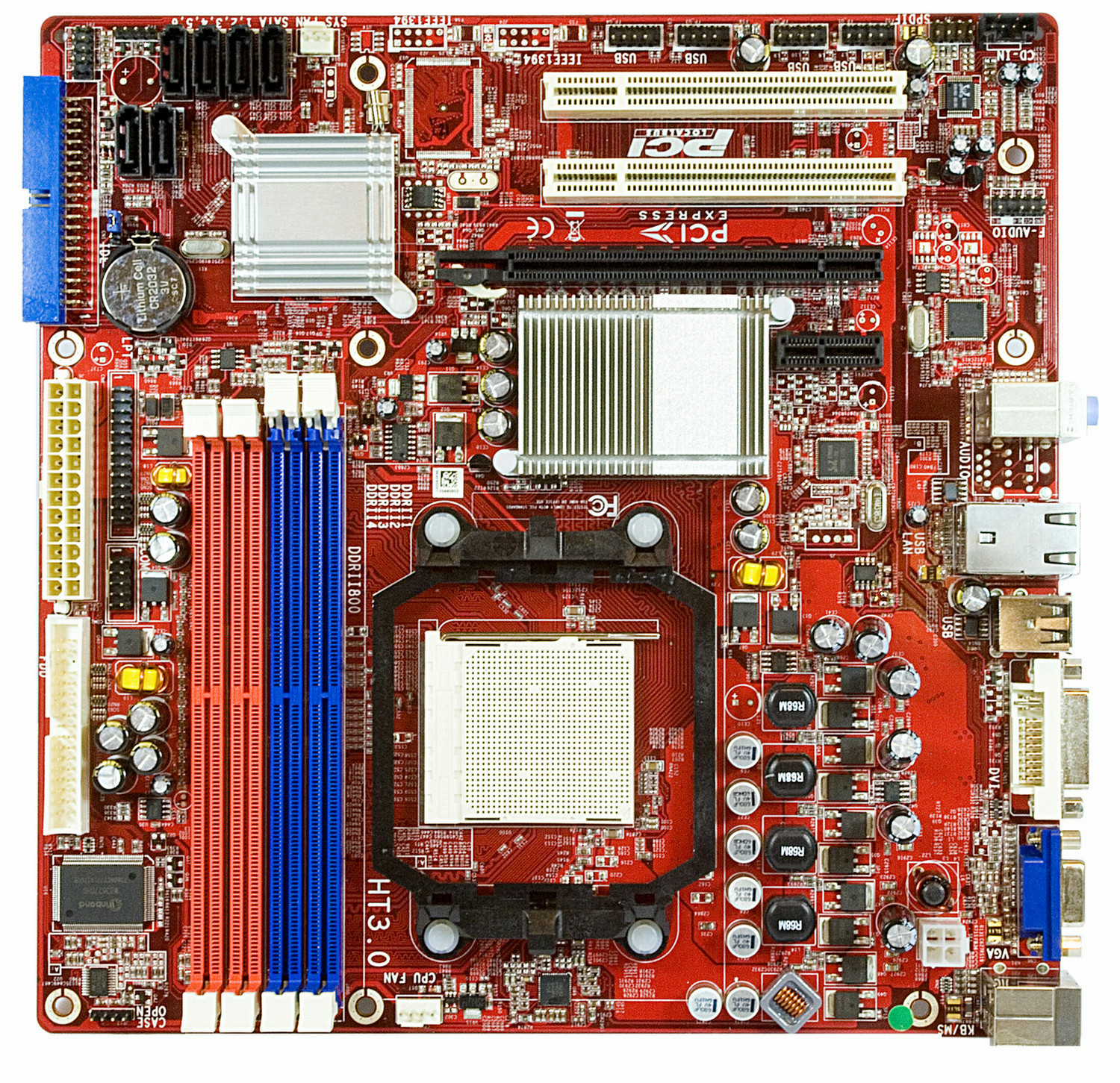

PI-AM2RS780V
AMD Phenom Quad-Core Processors with HyperTransport Technology
Realize new possibilities for connecting with friends, family, and digital entertainment with the phenomenal performance of the AMD Phenom 9000 series quad-core processor. Built from true quad-core performance, AMD Phenom processors speed through advanced multitasking, critic al business productivity, advanced visual design and modeling, serious gaming, and visually stunning digital media and entertainment.. HyperTransport technology can increase overall system performance by removing I/O bottlenecks, increasing system bandwidth, and reducing system latency.
AMD 780V Chipset: DirectX 10, HT3, and PCI-E Gen2 Technology
AMD 780V chipset based on the latest ATI Radeon 3100 graphics and PCI-Express Gen2 bus with CPU by Hyper Transport 3.0 high speed technology can deliver high performance, low latency architecture offer one of the industry’s advanced power efficiency solutions, secure high-speed Graphic core, and high-performance video technology— ensures that your PC stays ready for games, future applications, and next-generation PC specifications
AMD SB700 Southbridge Chipset
AMD SB700 Series offers advanced technologies and superior performance to any chipset platform solution for AMD desktop and mobile applications. With superior performance and broad-based connectivity, SB700 is rich in all the latest advanced features such as 12 USB 2.0 ports and audio. Designed for full data access for the fastest Windows Vista experience, it features new disk controller technologies that ensure fast file access while providing encryption for data security. AMD SB700 is designed with advanced power management for low power consumption and energy efficient platforms.
OC-CON high-polymer solid electrolysis aluminum capacitors embedded
The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.
CPU OverClocking items to the scalabilities and flexibilities
The adjustable voltage for CPU Vcore and ratio, FSB bus can be adjusted many stages for the precisely hardware dynamic over-clocking of demanding computing performance.
