Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Audio system |
HD |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Flash memory |
32 MB |
Processor
| Maximum number of SMP processors |
1 |
BIOS
| BIOS type |
AMI |
| Clear CMOS button |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| S/PDIF in connector |
Y |
| Number of SATA II connectors |
4 |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
Graphics
| Maximum graphics adapter memory |
1024 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| HDCP |
Y |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x16 slots |
1 |
Back panel I/O ports
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| DVI-I ports quantity |
1 |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
Intel H61 |
| Graphics |
HD Graphics |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Mini-iTX, Intel H61, LGA1155, DDR3 RAM, 6x USB 2.0, 2x USB 3.0, 1x HDMI, Gigabit Ethernet

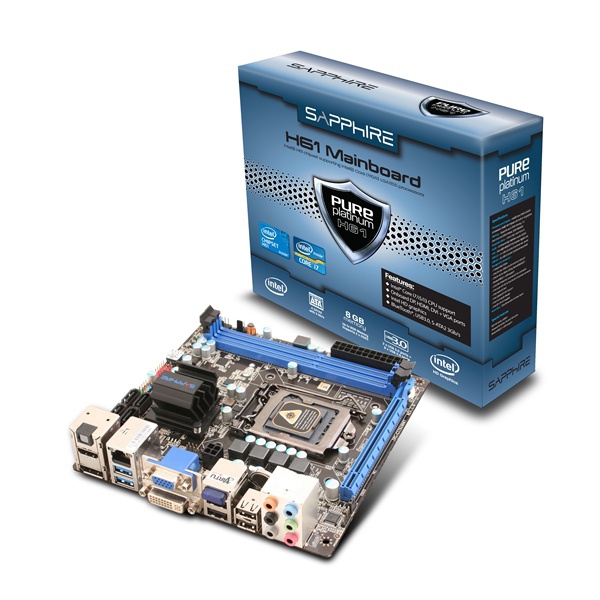

The Sapphire Pure Platinum H67 is Intel® H61 Express Chipset based desktop board in MiniITX form factor. It supports the 2nd generation Intel® Core™ i7 /i5 /i3 and other Intel® processors in the LGA1155 package. The board is featured with Display Port, DVI-I and Intel® High Definition Audio HDMI Driver connectors and supports dual independent display for processors with Intel® HD Graphics. Powered by the 2nd generation Intel® Core™ processors. Sapphire Pure Platinum H67 also offers premium features such as Bluetooth, two USB 3.0 ports with 5 Gb/s link speed and four SATA 3 Gb/s ports.
