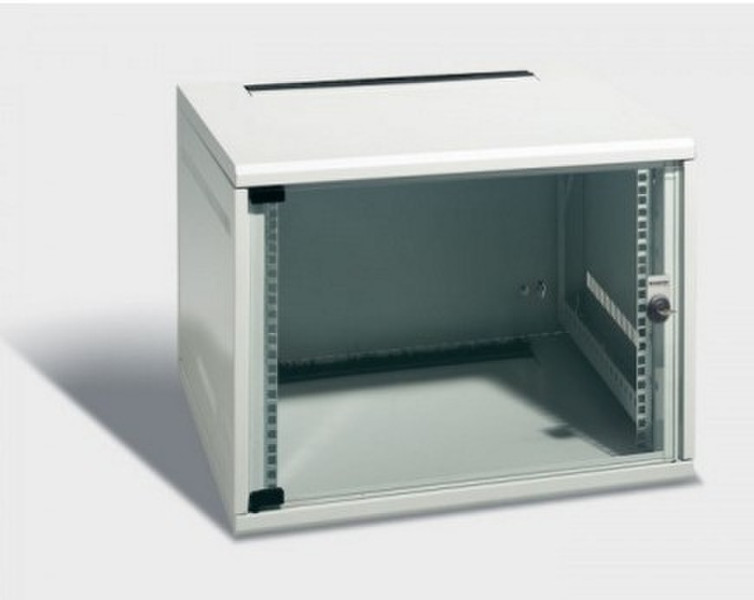

Schaefer 7309600 racks

NT Box 570 x 475 x 600 m, 9U <b>Quick Overview</b>

High-grade steel housing (light grey RAL 7035) complete with basic equipment.

Optimum accessibility for fast installation: once the door is open, the side panels can be drawn forward easily.

Mounted ready for installation, glazed door at front, inc. lock, 482.6 mm (19") mounting angles at front, cable entry apertures in top and bottom and cable management rails.

Transportable packaging for single units.

- Specially developed for small networks, sub-distributors and floor distributors.
- Housing is easily accessible from three sides and allows all components to be installed easily.
- To change the doors from left to right-hand opening, simply lift out the hinge pin and replace them in the fixings provided.
- Cable entry apertures with brush strips are fitted in the top and bottom panels and/or rear panel and can be replaced by flange plates on request.
- Side panels with passive venting.
- Available in 15 different sizes.
- Integrated 482.6 mm (19") mounting angles can be installed either at the front or rear and are depth adjustable.
