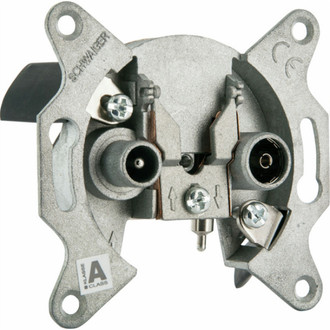

Schwaiger DSG 531 TV + Radio Silver socket-outlet

TV/Radio, 66 x 70 mm, 5 - 2150 MHz, 1 x IEC jack, 1 x IEC connector This SCHWAIGER® pass-through socket is suitable for use on CATV or MATV antenna systems. It is designed to be a pass-through or terminal socket. When used as a terminal socket, the included resistor has to be inserted. The socket is suitable for reception of TV and radio signals and CANNOT be used as a single socket without terminating resistor. Due to a special clamping technique, the cable connections do not have to be screwed.

- clamping technology for screwless fastening of the inner conductor (Ø 0.8 - 1.3 mm)
- can be used as pass-through socket or terminal box
- can only be used as terminal socket in combination with a 75 ohms resistor (inlcuded)
