Technical details
Flash metering modes |
With synchro cord, Without synchro cord |
Ambient light metering modes |
EV, Shutter priority |
Power
Power source type |
Battery |
Battery
Battery voltage |
1.5 V |
Battery type |
AA |
Number of batteries supported |
1 |
3 - 8000 ISO, 60 sec -1/8000 sec, 100g, black
Incident or reflected light measurement
Reflected light readings are captured at a receiving angle of about 40 degrees for subject readings made at the camera. Slide the L-308S's built-in Lumisphere over the silicon photo diode for incident light exposure readings of three-dimensional subjects. Snap on the included Lumidisc over the sensor for metering flat artwork or measuring contrast and/or exposure ratios within a scene.
Ambient / Flash measurement
Incident or reflected ambient light readings can be made with the L-308S over a wide range of lighting conditions at shutter speeds from 60 seconds to 1/8000th of a second and apertures from f/stops of f/1.4 to f/90.9. Flash at speeds from 1 to 1/500th of a second can be measured cordlessly or wired using a separate accessory PC cord. Flash and ambient readings are automatically calculated to display the proper exposure for the combination.
Accurate measurements
Exposures accurate down to a tenth-of-a-stop for both ambient and electronic flash light readings are available in full-stop mode. The L-308S can also display shutter speeds and apertures in half or third-stop increments to mirror the exposure settings on your camera with a repeat accuracy of +/- 0.1 EV. For cinema applications frame rates can be set from 8 to 128 frames per second. ISO sensitivity can be set from 3 to 8000 in third-stop increments.
Compact size and lightweight

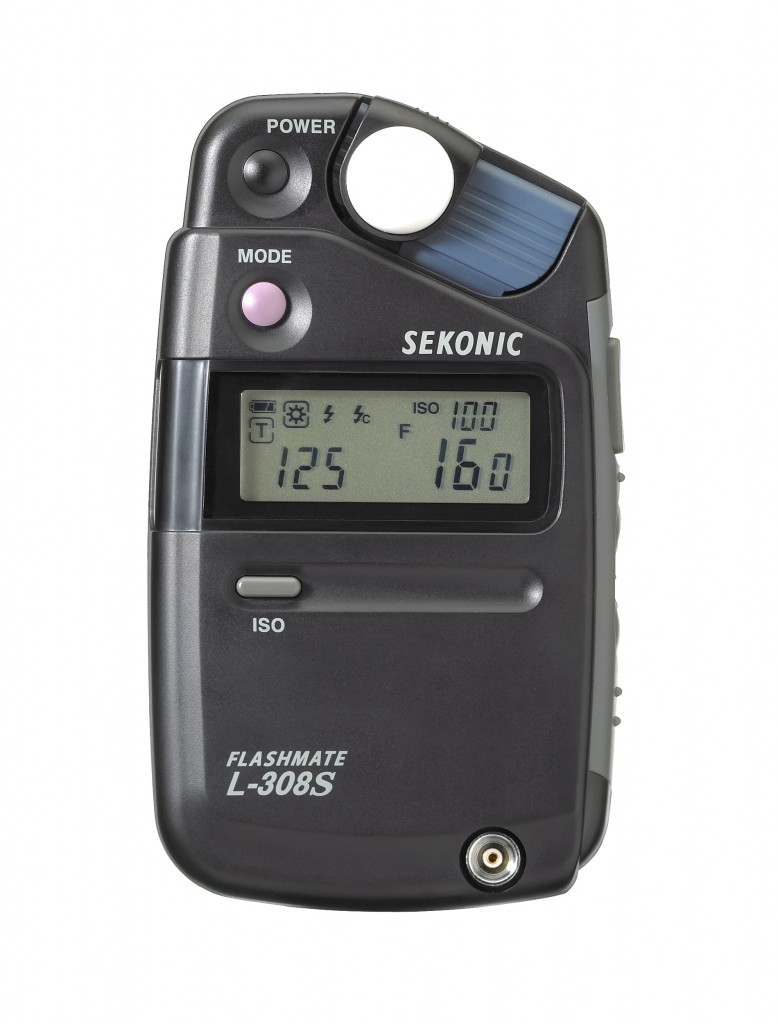

The L-308S is the smallest digital flash meter for reflective and incident light readings in ambient or electronic flash lighting conditions. It is compact and light enough to fit into a shirt pocket, yet versatile enough to meet virtually every photographic demand. The L-308S is powered by a single AA battery and weighs only 3.4 ounces (95g). Its measurements are a compact 2.5"W x 4.3"H x 0.9"D (63mmW x 110mmH x 22mmD).
