Display
| Sync-on-green (SOG) |
Y |
| Separate H/V sync |
Y |
| Display diagonal |
47 " |
| Viewable size, horizontal |
1040.13 mm |
| Viewable size, vertical |
584.19 mm |
| Aspect ratio |
16:9 |
| Display sRGB |
Y |
| HD type |
Full HD |
| Response time |
9 ms |
| Native aspect ratio |
16:9 |
| Composite sync |
Y |
| Contrast ratio (typical) |
1200:1 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Pixel pitch |
0.542 x 0.542 mm |
| Display brightness |
700 cd/m² |
| Display technology |
TN+Film |
| HDCP |
Y |
| 3D |
N |
| Display |
LCD |
Multimedia
| Analog signal format system |
NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, SECAM |
| Built-in subwoofer |
N |
| Number of speakers |
2 |
| RMS rated power |
20 W |
| TV tuner integrated |
N |
| Built-in camera |
N |
| Built-in speaker(s) |
Y |
Ergonomics
| Stand-by LED |
Y |
| Picture-in-Picture |
Y |
| VESA mounting |
Y |
| Plug and Play |
Y |
| Power LED |
Y |
| VESA mounting interfaces |
200 x 200 mm |
Packaging content
| Manual |
Y |
| Handheld remote control |
Y |
Ports & interfaces
| Composite video in |
1 |
| AC (power) in |
Y |
| DVI-D ports quantity |
2 |
| Audio input |
Y |
| Headphone outputs |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Weight & dimensions
| Bezel width (top) |
19.5 mm |
| Bezel width (bottom) |
19.5 mm |
| Bezel width (side) |
19.5 mm |
| Depth |
111 mm |
| Weight |
25500 g |
| Width |
1083 mm |
| Height |
628 mm |
Power
| Power consumption (typical) |
260 W |
| Power consumption (standby) |
2 W |
Operational conditions
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
20 - 80% |
Packaging data
| Package depth |
287.27 mm |
| Package weight |
30980 g |
| Package width |
1239.77 mm |
| Package height |
789.68 mm |
Additionally
| Display number of colors |
1.073 billion colours |
| Colour of product |
Black |
| S-Video in |
1 |
| RS-232 port |
1 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Energy efficiency compliance |
Unspecified |
| Operating temperature range (T-T) |
0 - 40 °C |

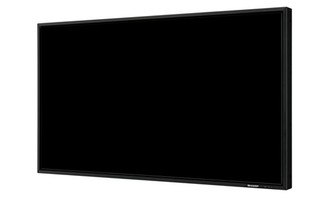

PN-E471RP - 47" LCD, 1920 x 1080, 700 cd/m2, 16:9, 1200:1, 9 ms
PN-E471RP, which features an integrated protective overlay for use in high traffic areas.
The 47" Class (46-15/16" Diagonal) PN-E471RP LCD monitor offers exceptionally high image quality and reliability for use in commercial display and digital signage applications. 24/7 certified, the thin bezel PN-E471R offers full 1920 x 1080 (1080p) resolution from analog RGB, digital RGB and HDTV video sources along with compatibility for use in both portrait and landscape modes. Fanless architecture helps ensure ultra-quiet reliable operation, and optional input/output expansion board and signage controller provide maximum flexibility. The PN-E471R LCD display professional monitor is fully compatible with SDSS™ Sharp Digital Signage Software and is backed by a 3-year on-site limited warranty (covering parts, labor and backlight).
- 47" Class (46-15/16" Diagonal) Screen Size w/ Thin Bezel.
- Full 1920 x 1080 Res. from Digital/Analog RGB & HD Video.
- 700 cd/m2 Brightness; 1000:1 Contrast Ratio.
- Optional Expansion Board and Signage Controller PC.
- Built-in 10W per Channel Stereo Audio System.
- Compatible for 24/7 use in Landscape and Portrait Modes.
