Processor special features
| Intel Fast Memory Access |
Y |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
65693 |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Thermal solution specification |
PCG 2011C |
| Intel® Rapid Start Technology |
N |
| Intel® Smart Response Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
1.00 |
| Intel Secure Key Technology version |
0.00 |
| Supported instruction sets |
SSE4.1, AVX, SSE4.2 |
| Intel Rapid Storage Technology |
N |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Smart Connect Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Graphics
| On-board graphics adapter ID |
0x152 |
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
650 MHz |
| Maximum graphics adapter memory |
1.692 GB |
| On-board graphics adapter dynamic frequency (max) |
1050 MHz |
| On-board graphics adapter |
Y |
| Number of displays supported (on-board graphics) |
3 |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
Processor
| Processor codename |
Ivy Bridge |
| Memory clock speeds supported by processor |
1333, 1600 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
Y |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Processor cache type |
Smart Cache |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
33 |
| Processor operating modes |
64-bit |
| Processor socket |
LGA 1155 (Socket H2) |
| Processor cores |
2 |
| Processor frequency |
3.3 GHz |
| Tcase |
65.3 °C |
| ECC supported by processor |
Y |
| Bus type |
DMI |
| Maximum internal memory supported by processor |
32 GB |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor cache |
3 MB |
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
55 W |
| Memory types supported by processor |
DDR3-SDRAM |
Storage
| Number of SSDs installed |
1 |
| Compatible memory cards |
SD, SDHC, SDXC |
| Total storage capacity |
60 GB |
| Card reader integrated |
Y |
| Storage media |
SSD |
| Solid-state drive interface |
Serial ATA |
| Hard drive size |
2.5 " |
| Solid-state drive capacity |
60 GB |
Power
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
90 W |
Ports & interfaces
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
Y |
Memory
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
Software
| Operating system architecture |
64-bit |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel H61 Express |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| System bus data transfer rate |
5 GT/s |
| Intel AES New Instructions |
N |

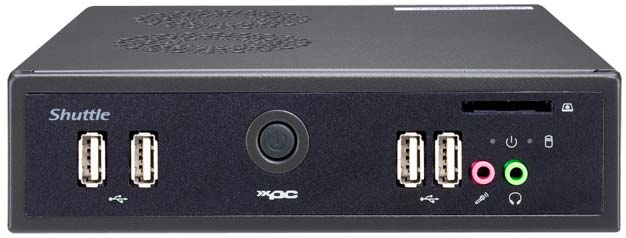

D 6100BA, i3-3220, H61 Express, 4GB DDR3 1333MHz, 60GB SSD, Intel HD Graphics 2500, SD Card Reader, Gigabit LAN, Wi-Fi n, Windows 7 Professional (64)
Robust, reliable and flexible: the 1.3 litre PC with powerful Intel desktop processor
Shuttle's D 6100BA is a slim, but powerful Slim PC with an Intel LGA1155 desktop processor offering the best quality, performance and connectivity to meet the requirements of processing high quality digital media. D 6100BA helps you build an affordable media player. The possibilities of this PC are highly versatile. With its robust metal chassis and outstanding temperature range the D 6100BA is an industrial-grade signage platform designed for long-term, smooth and reliable operation.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable. If your Mini-PC already has a Blu-ray drive, the path to high-definition entertainment is clear.
Dual network connection
In this model two gigabit network controllers ensure maximum data transmission rates via load balancing and maximum availability via the failover function.
The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.
Pre-assembled cabling saves time
The most important power and data cables are already routed and just have to inserted into the relevant components. This saves valuable time when setting up the system.
Digital monitor output
Large TFT monitors work with extremely high resolutions. Digital technology is essential for displaying video signals in excellent quality and with no loss of performance. This Mini-PC offers a high-quality DVI monitor output.
Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
You can rely on SSD
This is where an energy-saving "Solid State Drive" is put to use. This new drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.
Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Optimal air flow
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system.
