Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
1 |
| Drive bays |
1x 5.25“, 2x 3.5“ |
| Expansion slots |
1x PCI-Express x1 |
Graphics
| Maximum graphics adapter memory |
384 MB |
Memory
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Audio
| Audio system |
Realtek ALC 662 |
Networking
| Networking features |
Gigabit LAN |
Additionally
| Chipset |
Intel G31 Express |
| Graphics |
GMA 3100 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

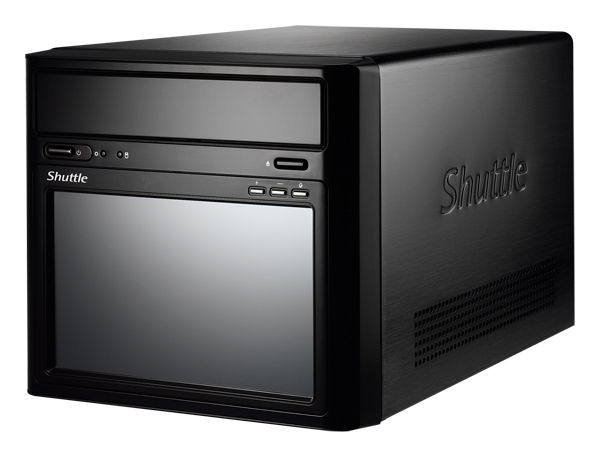

D10 - 7” touchscreen display 800x480, Intel G31 Express (Bearlake-G) + ICH7, Socket 775, 2 x 240 pin slots DDR2-667/800 SDRAM, 1 x PCI-Express x1, Intel GMA 3100 384MB, Gigabit LAN, 2x Serial-ATA II, 1 x IDE ATA 100, Black
A new touchscreen display integrated into the panel is the revolutionary option for the management of multimedia content and applications. Your finger replaces the input devices. Touching the display starts programs and executes commands. The Intel G31 Express chipset enables the use of Intel Core 2 Duo Processors with FSB 1333. The two sockets can hold up to 4 GB DDR2 memory. A gigabit network, USB, multi-channel audio and a PCI-Express X1 slot nicely finish off the offer.
