Ports & interfaces
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
1 |
| Drive bays |
2 x 3.5“ |
| Expansion slots |
1x PCI 32 bit |
Graphics
| Maximum graphics adapter memory |
224 MB |
Memory
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
Audio
| Audio system |
Realtek ALC 662 |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
Intel 945GC Express |
| Graphics |
GMA 950 |
K45S - Intel 945GC + ICH7, Intel GMA950, Socket 775, 1066/800/533 MHz FSB, 1x PCI 32 Bit, 2x DDR2-533/667, 2x SATA II (3 Gbit/s), 1x IDE ATA 100, Silver

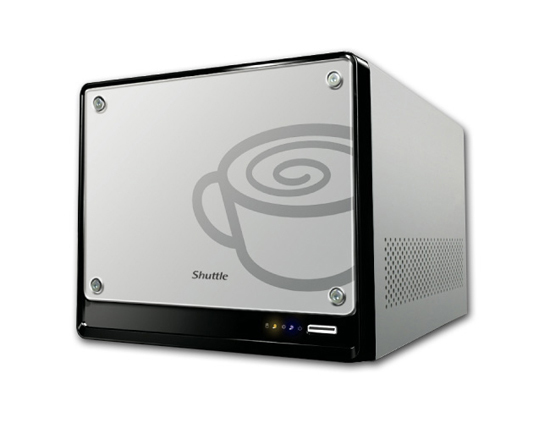

The Shuttle K-Series Barebone K45S is a great choice for basic computing needs such as office applications and web surfing in the business or home segment. The K45S is a small and stylish PC platform with low power consumption that seamlessly integrates into a network using its Ethernet or an optional WLAN interface. This affordable entry-level platform targets SME, corporate, public and educational institutions. Easily set up an ideal second home PC to manage any simple everyday applications in a snap while banking on Shuttle's high reliability.
