Ports & interfaces
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
Motherboard
| Supported processor frequency (max) |
3.6 GHz |
Other features
| Number of processors installed |
1 |
| Expansion slots |
1 x PCI-Express\n1 x PCI |
| Motherboard |
Shuttle FD31 |
Graphics
| Maximum graphics adapter memory |
256 MB |
Audio
| Audio system |
Creative Sound Blaster Live! 24-bit |
Memory
| Maximum internal memory |
2 GB |
Networking
| Networking features |
Broadcom 5789, 10/100/1000 Mbps |
Additionally
| Chipset |
Intel 945G Express |
| Graphics |
GMA 950 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

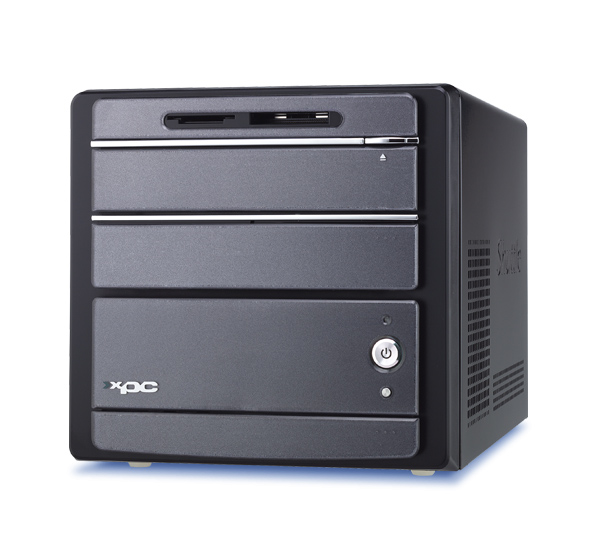

Shuttle XPC SD31P Barebone
Dual Core Ready!
The XPC SD31P destroys the myth that bigger PCs are faster. Designed for power-hungry users, this wicked-fast small form factor (SFF) computer delivers tower-crushing performance in one-third the space. With the support of 64-bit and Dual-Core CPUs up to 1066MHz FSB, Serial-ATA II with Matrix Storage Technologie, PCI-Express, HD-audio, 350W power supply, Silent X heatpipe cooling Shuttle again proved how to build latest technologies into a SFF PC, and thanks to toolless drive installation and pre-installed flat cables the hardware setup is very easy.
