Graphics
| Graphics adapter manufacturer |
Intel |
Ports & interfaces
| Serial ports quantity |
2 |
| Line-out |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Display
| Touchscreen technology |
Resistive |
Processor
| Processor cache |
2 MB |
| Processor cores |
2 |
| Processor frequency |
1.6 GHz |
Storage
| Solid-state drive capacity |
120 GB |
| Total storage capacity |
120 GB |
| Storage media type |
SSD |
| Solid-state drive interface |
Serial ATA III |
Software
| Operating system architecture |
64-bit |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Memory
| Memory clock speed |
1600 MHz |
| Memory slots type |
SO-DIMM |
| Internal memory type |
DDR3L-SDRAM |
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
Multimedia
| Number of speakers |
2 |
| Compatible memory cards |
SD, SDHC, SDXC |
| Optical drive type |
N |
| Card reader integrated |
Y |
Additionally
| Graphics |
HD Graphics 510 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel Celeron 3855U (2M Cache, 1.60 GHz), 4GB DDR3L 1600MHz, 120GB SSD, 39.624 cm (15.6 ") HD LED Touch 1366 x 768, Gigabit LAN, WLAN, WebCam, Windows Embedded POSReady 7 64-bit
Fanless All-in-one PC for POS applications

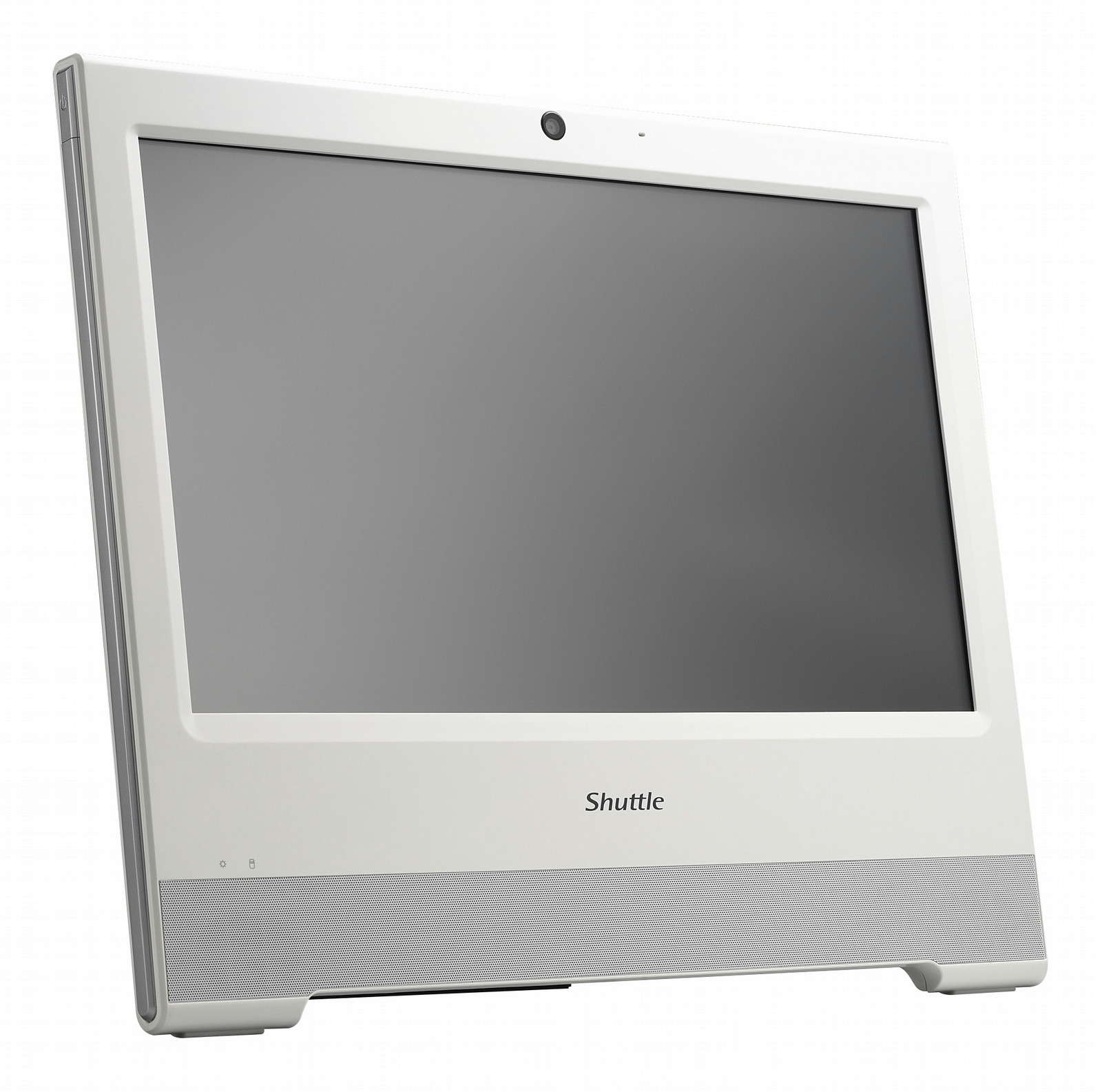

The Shuttle POS X5050PA is a valued All-in-One POS Terminal PC boasting a 15.6-inch touchscreen and Windows Embedded POSReady 7 operating system. It is equipped with Intel Celeron® ULV Processor, 120 GB SSD and 4 GB RAM. This system is suitable for small and medium retailers to serve customers effectively. It offers numerous connectors for typical POS peripherals - two COM ports are also available. In addition, the HDMI and VGA ports can be used to drive two more displays with basic digital signage applications. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and is approved for 24/7 nonstop operation. Particularly suitable for POS applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water. POS X5050PA offers a high level of reliability and is a lower priced alternative to conventional POS systems.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Inbuilt stereo speakers
Two powerful speakers are elegantly integrated into the design and deliver astonishingly good sound quality. And when more power is needed, you can attach external speakers via audio jacks.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Solid base
Folded 180° vertically, the chrome anti-slip pedestal can be used as a carrying handle. A particularly clever solution from Shuttle's engineers.
Keeping in touch
The revolutionary touchscreen allows this Mini-PC to be controlled without the use of mouse or keyboard. Touching the screen with a finger or stylus takes the place of the mouse. And with a virtual keyboard, entries can be made directly on the screen.
Securely attached
The practical VESA mounting surface on the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts.
Integrated Webcam
The inbuilt Webcam enables problem-free video telephony and video conferencing in high-quality megapixel format.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.
