Bandwidth
| Supported data transfer rates |
6, 9, 12, 18, 24, 36, 48, 54 |
| Bandwidth |
2.400 GHz |
Ports & interfaces
| Host interface |
USB |
| Internal |
N |
Antenna
| Antenna type |
External Antenna, designed for Shuttle XPC |
Other features
| Outdoor range |
400 m |
| Compliance industry standards |
WiFi IEEE 802.11b/g |
| Supported protocols |
64/128 bit WEP / WPA / WPA2 |
Networking
| Chipset |
Realtek RTL8187, RF Chip: Realtek RTL8225 |
Additionally
| Indoors max range |
100 m |
| Transfer rate (Mbps) |
54 Mbit/s |
| Wireless connections |
Y |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wireless |

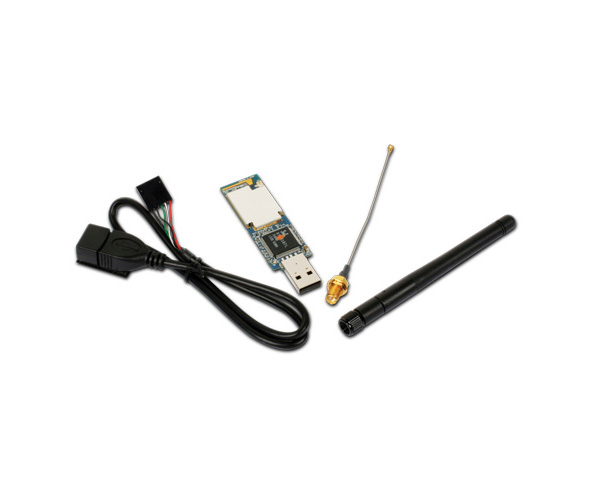

Wireless LAN Module
The Shuttle XPC Accessory PN20 is a 802.11b/g Wireless Kit, aims to let your XPC quickly and seamlessly communicate with a 802.11b/g (at up to 54 Mbps) networks. Wireless networking uses radio frequencies to transmit and receive data between your XPC’s and other network devices. With this Wireless Kit, surfing on the Internet couldn’t be any easier. Simply install the USB connector to the reserve header on mainboard, launch the attached software to configure the module, and you will be ready to experience a WLAN (wireless local area network) that can be accessed anywhere.
