Processor
| Thermal Design Power (TDP) |
10 W |
| Maximum number of PCI Express lanes |
4 |
| Memory channels supported by processor |
Single |
| Conflict Free processor |
N |
| Tjunction |
100 C °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Processor socket |
BGA 559 |
| Stepping |
B3 |
| Processor cores |
2 |
| Processor frequency |
1.86 GHz |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
32 nm |
| Processor codename |
Cedarview |
| Memory clock speeds supported by processor |
800, 1066 MHz |
Software
| Operating system architecture |
32-bit |
Ports & interfaces
| Thunderbolt ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
N |
Processor special features
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
65470 |
| Processor code |
SR0VY |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
N |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
Packaging content
| Keyboard supplied |
N |
| Mouse included |
N |
| Display included |
N |
Graphics
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
640 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
Storage
| Hard drive capacity |
320 GB |
| Compatible memory cards |
SD, SDHC, SDXC |
| Total storage capacity |
320 GB |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
Power
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
40 W |
Memory
| Maximum internal memory |
4 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
Networking
| Wi-Fi |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Additionally
| Chipset |
Intel NM10 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| InTru™ 3D Technology |
N |
Intel Atom Processor D2550 (1M Cache, 1.86 GHz), Intel NM10, 2GB DDR3 1333MHz, 320GB SATA HDD, Intel GMA 3650, Gigabit Ethernet, WLAN 802.11 b/g/n, Windows 7 Professional 32-bit

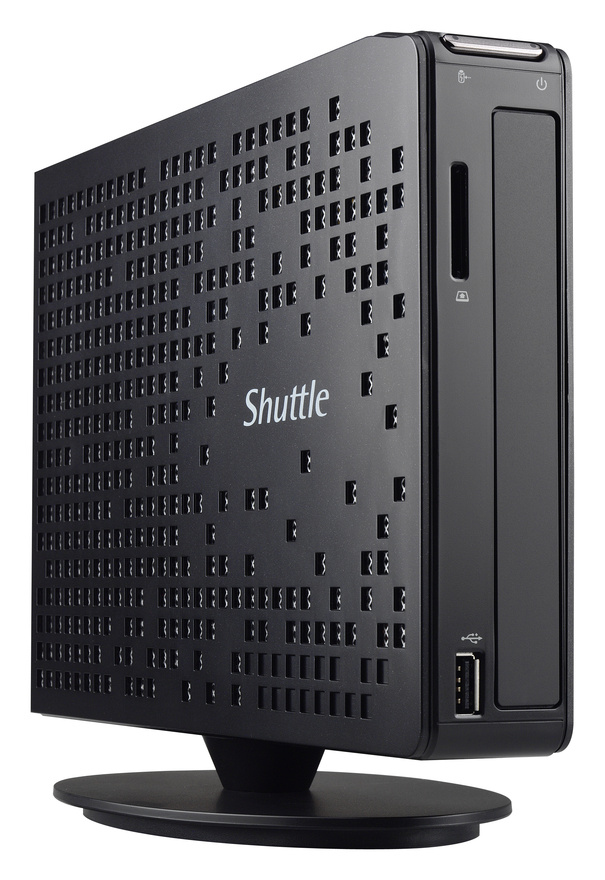

XS 3501BA V3 is a fully configured slim PC with 2 GB RAM, 320 GB hard disk and Windows 7 Professional operating system. The Atom D2550 processor clocked at 2x 1.86 GHz offers sufficient computing power for a wide range of possible applications and the system barely consumes about 16~20 Watts. This PC comes totally fanless making it perfect to be used in noise-sensitive environments. XS 3501BA V3 features WLAN and card reader, and sports an array of connectors too which include HDMI, D-Sub (VGA), 5x USB, VGA, Gigabit-LAN and 2x audio ports. It's a slim and stylish PC targeted for daily home or office applications, as well as for purely network-based applications in client/server environments.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Generous supply of USB ports
You can never have enough of those versatile USB ports. This Shuttle Mini-PC offers 6 ports, with further ports for internal expansions located on the mainboard.
Compatible with Microsoft Windows 7
This Shuttle Mini-PC is ideally prepared for the new Microsoft Windows 7 operating system. Updating to the new version couldn't be simpler.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
