Graphics
| On-board graphics adapter |
Y |
| Discrete graphics memory type |
GDDR3 |
| Discrete graphics adapter model |
NVIDIA ION 2 |
| Discrete graphics adapter memory |
512 GB |
Processor
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Processor codename |
Pineview |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Processor frequency |
1.8 GHz |
| ECC supported by processor |
N |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
176 M |
| Number of processors installed |
1 |
| Stepping |
B0 |
| Processor cores |
2 |
Processor special features
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor code |
SLBXC |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel Rapid Storage Technology |
N |
| Processor ARK ID |
49490 |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
Software
| Operating system architecture |
32-bit |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MS PRO, SD, SDHC |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
Other features
| Safety |
CB, BSMI, ETL |
| Networking features |
Gigabit Ethernet, WLAN |
| Graphics adapter family |
NVIDIA |
Optical drive
| Optical drive type |
DVD Super Multi |
Power
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50/60 Hz |
| Power supply |
40 W |
Design
| Cable lock slot |
Kensington |
Memory
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Ports & interfaces
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
N |
| Headphone outputs |
1 |
| Microphone in |
Y |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel NM10 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Processing die size |
87 mm² |

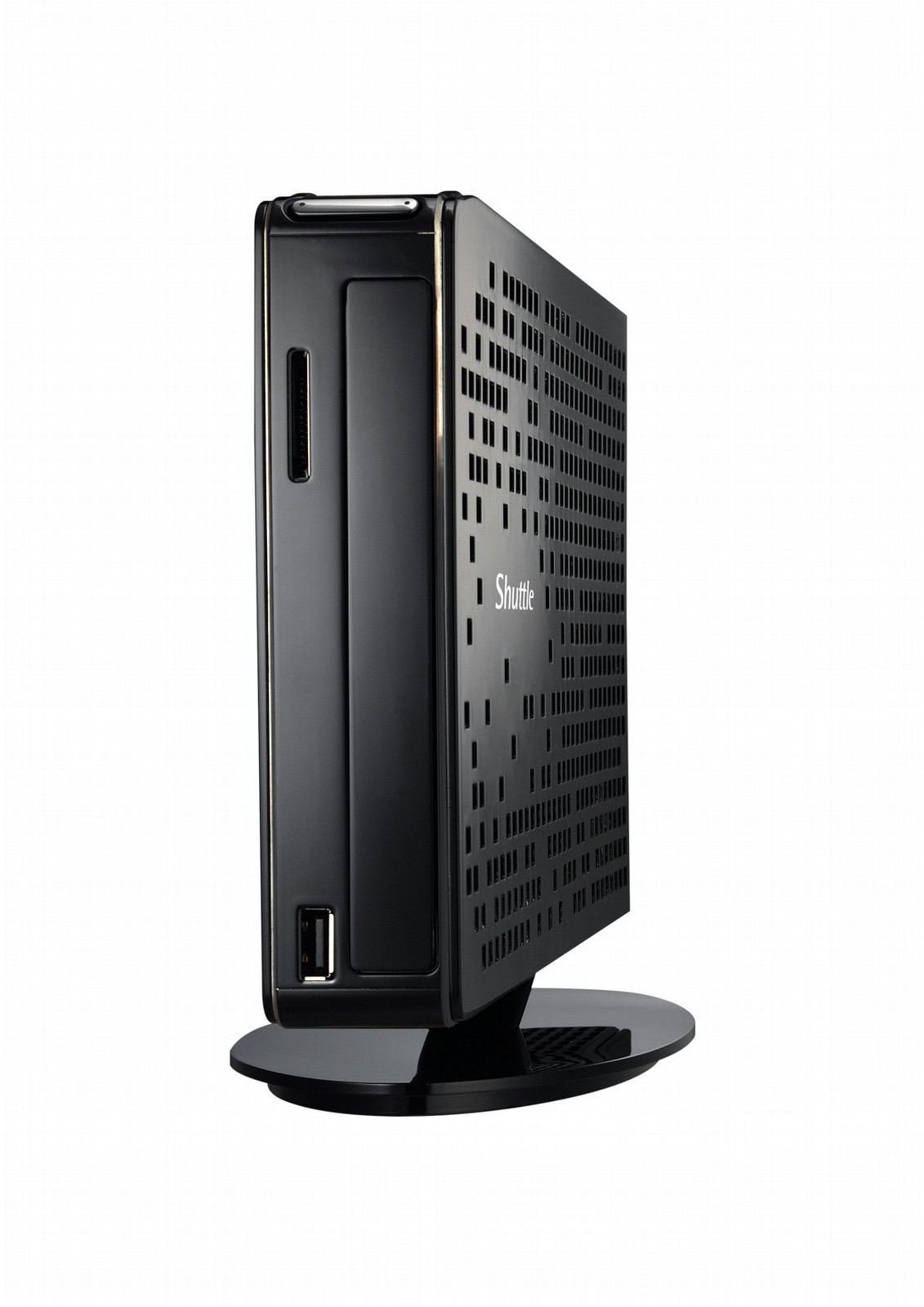

XS 3510MA V2 - Intel Atom D525 (1M Cache, 1.80 GHz), Intel NM10 Express, 2 GB DDR3 SO-DIMM, 500 GB Serial ATA, DVD super multi, NVIDIA ION 2, Gigabit LAN, WLAN 802.11b/g/n, 40W, Microsoft Windows 7 Home Premium 32 bit, Fanless and whisper-quiet
Only 38 mm thin, HD-ready, fanless and low power consumption
The Shuttle XS 3510MA V2 is a complete Mini-PC in the 1-litre class with Windows 7 Home Premium operating system. Intel's Atom D525 Dual Core Processor (2x 1.8 GHz) and the NM10 Express chipset serve as the energy-saving hardware platform. A high-performance Next-Generation NVIDIA® ION™ graphics card (ION2) provides streaming 3D and video playback. Thanks to the HDMI connection there is also excellent sound and picture quality. Other front and rear connections include 5 x USB, VGA, Gigabit LAN and Audio. For wireless communication, WLAN (n) is already integrated. The small casing includes a card reader, 2GB DDR3 memory, a 500GB hard disk and a DVD writer in slimline format. The XS 3510MA V2 is 100% passively cooled, and thus virtually noiseless.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Generous supply of USB ports
You can never have enough of those versatile USB ports. This Shuttle Mini-PC offers 6 ports, with further ports for internal expansions located on the mainboard.
Compatible with Microsoft Windows 7
This Shuttle Mini-PC is ideally prepared for the new Microsoft Windows 7 operating system. Updating to the new version couldn't be simpler.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable. If your Mini-PC already has a Blu-ray drive, the path to high-definition entertainment is clear.
