Graphics
| Discrete graphics adapter model |
Intel GMA 3150 |
| Maximum graphics adapter memory |
0.256 GB |
| On-board graphics adapter |
Y |
Processor special features
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
49490 |
| Processor code |
SLBXC |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
Storage
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MS PRO, SD, SDHC |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
| Total storage capacity |
160 GB |
| Card reader integrated |
Y |
Other features
| Safety |
CB, BSMI, ETL |
| Networking features |
Gigabit Ethernet, WLAN |
| Graphics adapter family |
Intel |
Power
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50/60 Hz |
| Power supply |
40 W |
Memory
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Processor
| Processor frequency |
1.8 GHz |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
176 M |
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Processor codename |
Pineview |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Stepping |
B0 |
| Processor cores |
2 |
| ECC supported by processor |
N |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
N |
| Headphone outputs |
1 |
| Microphone in |
Y |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
Design
| Cable lock slot |
Kensington |
Additionally
| Chipset |
Intel NM10 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Processing die size |
87 mm² |
| InTru™ 3D Technology |
N |

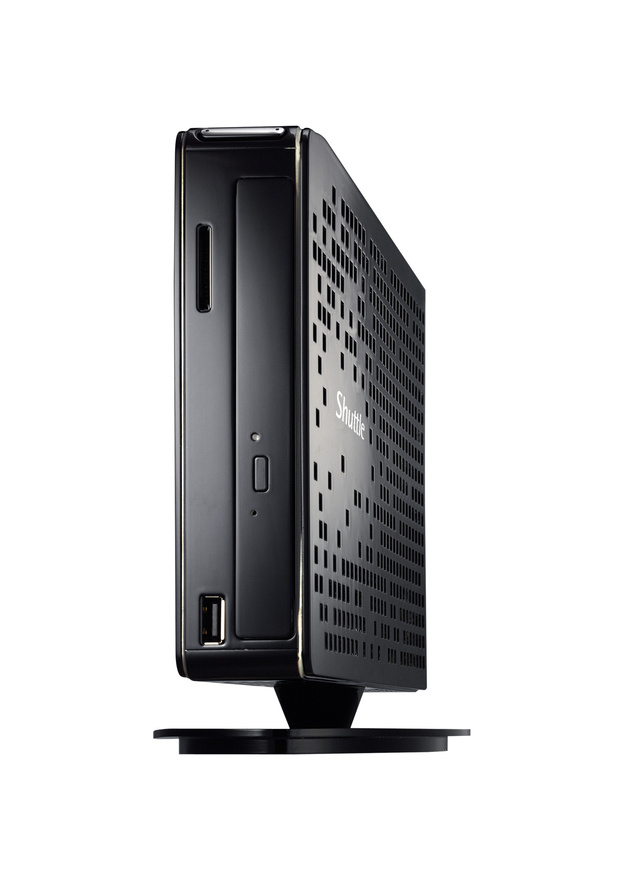

XS35703V2 - Intel Atom D525 (1M Cache, 1.80 GHz), 2 GB DDR3, 160 GB Serial ATA HDD, Intel GMA 3150, Gigabit LAN, WLAN 802.11 b/g/n
To put it in a nutshell, the Shuttle XS35-703 V2 is an extremely slim and ergonomic Mini PC that works highly energy-efficiently. With a power consumption that is barely not worth mentioning, its noise nevel is close to zero. The XS35-703 V2 has an Intel Atom D525 dual-core processor (2x 1.8 GHz) beating at its heart while also using integrated graphics. Because of its completely fanless case layout, it is virtually maintenance-free and noiseless. The 38mm thin system comes with 2GB DDR3 memory, a 160GB hard disk (without operation system), WLAN (n) and a card reader. It sports an array of connectors too which include 5x USB, VGA, Gigabit LAN and audio ports.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Generous supply of USB ports
You can never have enough of those versatile USB ports. This Shuttle Mini-PC offers 6 ports, with further ports for internal expansions located on the mainboard.
Compatible with Microsoft Windows 7
This Shuttle Mini-PC is ideally prepared for the new Microsoft Windows 7 operating system. Updating to the new version couldn't be simpler.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
