Other features
| Headphone connectivity |
3.5 mm |
| HDMI |
Y |
| Ethernet interface type |
Gigabit Ethernet |
| Processor manufacturer |
Intel |
| Microphone connectivity |
3.5 mm |
| USB ports quantity |
5 |
| Built-in microphone |
N |
| Speakers |
N |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Built-in camera |
N |
| Form factor |
1,3L-sized PC |
| Cooling type |
Passive |
| Power supply type |
AC/DC |
| Graphics adapter family |
AMD |
| Built-in subwoofer |
N |
| Wi-Fi data rate (max) |
150 Mbit/s |
| Security features |
WPA/WPA2(-PSK), WEP 64/128bit, IEEE 802.11x/i |
| Safety |
CB, BSMI, ETL |
Processor
| Thermal Design Power (TDP) |
10 W |
| Maximum number of PCI Express lanes |
4 |
| Processor codename |
Cedarview |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Single |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| FSB Parity |
N |
| Stepping |
B2 |
| Processor cores |
2 |
| Processor frequency |
2.13 GHz |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
32 nm |
| Processor operating modes |
64-bit |
Processor special features
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
59683 |
| Processor code |
SR0D9 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel® Smart Response Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
| Bluetooth |
N |
| Cabling technology |
10/100/1000Base-T(X) |
| Wake-on-LAN ready |
Y |
| Internal modem |
N |
Ports & interfaces
| Total number of SATA connectors |
2 |
| Line-in |
Y |
| Line-out |
Y |
| Headphone outputs |
1 |
| S/PDIF out port |
N |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
N |
| SmartCard slot |
N |
| Combo headphone/mic port |
N |
Packaging content
| Keyboard supplied |
N |
| Mouse included |
N |
| Display included |
N |
Graphics
| Discrete graphics memory type |
GDDR3 |
| Discrete graphics adapter model |
AMD Radeon HD 7410M |
| Discrete graphics adapter memory |
512 GB |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
| On-board graphics adapter base frequency |
640 MHz |
Storage
| Compatible memory cards |
SD, SDHC, SDXC |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
| Hard drive capacity |
500 GB |
Optical drive
| Optical drive type |
DVD-RW |
Power
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
40 W |
Memory
| Maximum internal memory |
4 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory slots |
2 |
Design
| Cable lock slot |
Kensington |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel NM10 |
| Intel HD Audio Technology |
Y |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
2.5 GT/s |
| Fibre Channel |
N |
Intel Atom D2700 (2.13 GHz, L2 1MB), DDR3 2GB, HDD 500GB (SATA, 2.5"), AMD Radeon HD 7410M, 1 x HDMI v1.4a, 1 x D-Sub (VGA), 5 x USB, 1 x VGA, 1 x RJ-45, Gigabit-LAN, WLAN 802.11 b/g/n, SD CardReader, DVD R/W, 40W, w/o OS

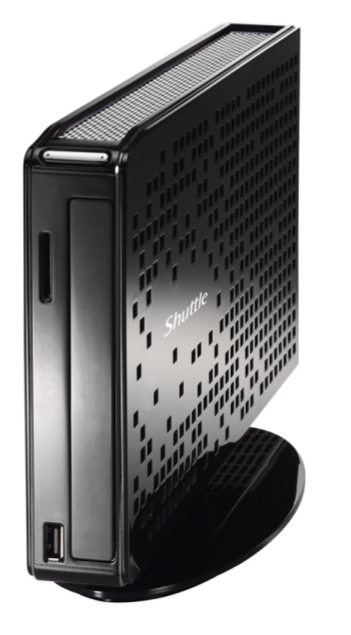

XS35GTA-804 V3 is a fully configured slim PC with 2 GB RAM, 500 GB hard disk and DVD-R/W drive, but without operating system. The powerful AMD Radeon HD 7410M graphics card makes fluent video playback on full-HD displays a reality. The Atom D2700 processor clocked at 2x 2.13 GHz offers sufficient computing power for a wide range of possible applications and the system barely consumes about 19~27 Watts. This PC comes totally fanless making it perfect to be used in noise-sensitive environments. XS35GTA-804 V3 features WLAN and card reader, and sports an array of connectors too which include
HDMI, D-Sub (VGA), 5x USB, VGA, Gigabit-LAN and 2x audio ports. It's a slim and stylish PC targeted for daily home or office applications and is capable of playing Full HD 1080p video and 3D contents.
