Processor special features
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
32 bit |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Processor package size |
22 mm |
| Processor ARK ID |
49490 |
| Processor code |
SLBXC |
| Intel® My WiFi Technology (Intel® MWT) |
N |
Processor
| Thermal Design Power (TDP) |
13 W |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Processor frequency |
1.8 GHz |
| ECC supported by processor |
N |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
176 M |
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Processor codename |
Pineview |
| Stepping |
B0 |
| Processor cores |
2 |
Memory
| Memory layout (slots x size) |
1 x 2 GB |
| Memory slots |
1x SO-DIMM |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
| Maximum internal memory |
4 GB |
Graphics
| Discrete graphics memory type |
GDDR3 |
| Discrete graphics adapter model |
NVIDIA ION 2 |
| Discrete graphics adapter memory |
512 GB |
| On-board graphics adapter |
Y |
Storage
| Hard drive capacity |
160 GB |
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MS PRO, SD, SDHC |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
| Total storage capacity |
160 GB |
| Card reader integrated |
Y |
Other features
| Security features |
WPA/WPA2(-PSK), WEP 64/128bit, IEEE 802.11x/i |
| Safety |
CB, BSMI, ETL |
| Networking features |
Gigabit Ethernet, WLAN |
| Graphics adapter family |
NVIDIA |
Networking
| Wi-Fi |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Ports & interfaces
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
N |
| Headphone outputs |
1 |
| Microphone in |
Y |
Power
| Power supply input frequency |
50/60 Hz |
| Power supply |
40 W |
| Power supply input voltage |
100 - 240 V |
Optical drive
| Optical drive type |
DVD-RW |
Design
| Cable lock slot |
Kensington |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel NM10 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Processing die size |
87 mm² |

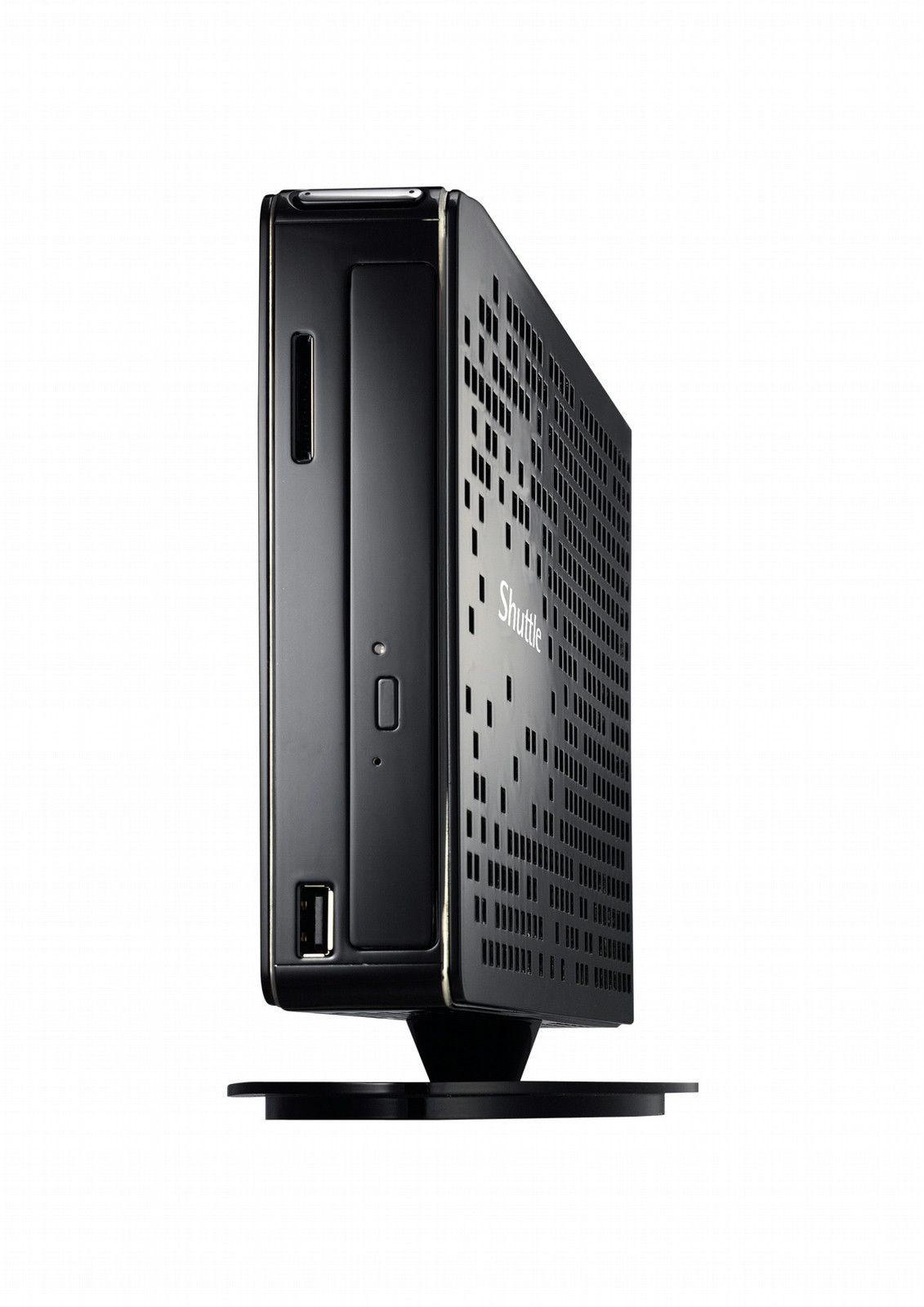

XS35GTV2-803 V2 - Intel Dual Core Atom D525 (1M Cache, 1.80 GHz), 2GB DDR3, 160GB SATA HDD, Next-Generation NVIDIA ION 512MB DDR3, Gigabit LAN, WLAN 802.11 b/g/n, DVD-RW, no OS, Fanless
38 mm thin, loaded with enthusiasm: HD-compatible 1-litre PC without fan
If something appears in a further edition, then it must have been very well received. The second version of the XS35 model series qualifies for this privilege. The Barebone XS35GTV2 follows in the footsteps of its successful predecessor and is now being presented with a more powerful processor, support for DDR3 memory and a faster network interface. The proven properties of the first version have remained untouched. The XS35GTV2 makes use of the next-generation NVIDIA ION graphics card and offers an HDMI interface in addition to a VGA connector making it child’s play to connect it to flat screen monitors and television sets. This also allows HD films to be played back fluently from the hard disk, the internet or a Blu-ray drive. This power-saving PC completely does away with intrusive fans so that you can enjoy your favourite films even more.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Generous supply of USB ports
You can never have enough of those versatile USB ports. This Shuttle Mini-PC offers 6 ports, with further ports for internal expansions located on the mainboard.
Compatible with Microsoft Windows 7
This Shuttle Mini-PC is ideally prepared for the new Microsoft Windows 7 operating system. Updating to the new version couldn't be simpler.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable. If your Mini-PC already has a Blu-ray drive, the path to high-definition entertainment is clear.
