Processor special features
| Processor code |
SR0VY |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Physical Address Extension (PAE) |
Y |
| Intel Clear Video Technology |
N |
| Intel® Smart Response Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
N |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
65470 |
| Intel 64 |
Y |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
Processor
| Processor codename |
Cedarview |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Single |
| Conflict Free processor |
N |
| Tjunction |
100 C °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Stepping |
B3 |
| Processor cores |
2 |
| Processor frequency |
1.86 GHz |
| Maximum internal memory supported by processor |
4 GB |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Processor cache type |
L2 |
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
10 W |
| Maximum number of PCI Express lanes |
4 |
Packaging content
| Keyboard supplied |
N |
| Mouse included |
N |
| Display included |
N |
Graphics
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
640 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
Storage
| Hard drive capacity |
320 GB |
| Compatible memory cards |
SD, SDHC, SDXC |
| Total storage capacity |
320 GB |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Number of hard drives installed |
1 |
| Hard drive interface |
Serial ATA |
| Hard drive size |
2.5 " |
Memory
| Memory slots |
2 |
| Maximum internal memory |
4 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Power
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
40 W |
Ports & interfaces
| Headphone outputs |
1 |
| S/PDIF out port |
N |
| Microphone in |
Y |
| DVI port |
Y |
| SmartCard slot |
N |
| Combo headphone/mic port |
N |
| Serial ports quantity |
2 |
| Thunderbolt ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Other features
| Form factor |
1,3L-sized PC |
| Cooling type |
Passive |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel NM10 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel Atom Processor D2550 (1M Cache, 1.86 GHz), Intel NM10, 2GB DDR3, 320GB SATA HDD, Intel GMA 3650, Gigabit Ethernet, WLAN 802.11 b/g/n

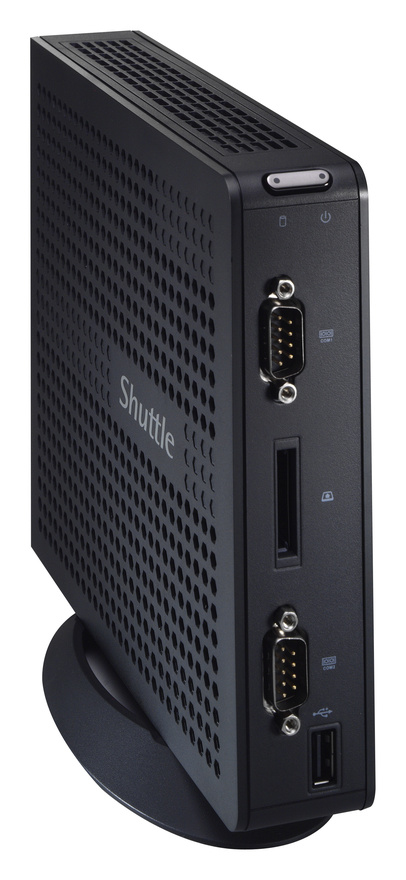

The Shuttle Slim PC XS36V-703L is an extremely slim and ergonomic Mini PC that works highly energy-efficiently. With a power consumption that is barely worth mentioning, and because of its completely fanless case layout, it is virtually maintenance-free and noiseless. This PC platform is powered by an Intel Atom D2550 dual-core processor (2x 1.86 GHz) with integrated GMA 3650 graphics, 2 GB DDR3 memory, 320 GB hard disk, WLAN (n) and card reader. The operating system not included. It sports an array of connectors too which include HDMI 1.3, DVI-D, D-Sub (VGA), 5x USB, Gigabit-LAN, audio ports and two RS232 COM ports for business and vertical Markets.
Intel Atom CPU platform
Atom epitomises an energy-saving, multi-functional CPU platform. Despite its low energy consumption, this highly integrated platform features a dual core processor with integrated graphics card. The computing power of this platform easily meets everyday office needs or the demands of more simple home applications.
Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
You can rely on SSD
This is where an energy-saving "Solid State Drive" is put to use. This new drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Digital monitor output
Large TFT monitors work with extremely high resolutions. Digital technology is essential for displaying video signals in excellent quality and with no loss of performance. This Mini-PC offers a high-quality DVI monitor output.
Supports dual monitoring
For increased screen area the two monitor outputs (DVI+VGA) can be connected to one display each. Depending on the settings, the output image can be duplicated or expanded on the second screen.
HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable. If your Mini-PC already has a Blu-ray drive, the path to high-definition entertainment is clear.
Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.
Compatible with Microsoft Windows 7
This Shuttle Mini-PC is ideally prepared for the new Microsoft Windows 7 operating system. Updating to the new version couldn't be simpler.
