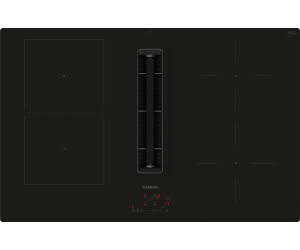

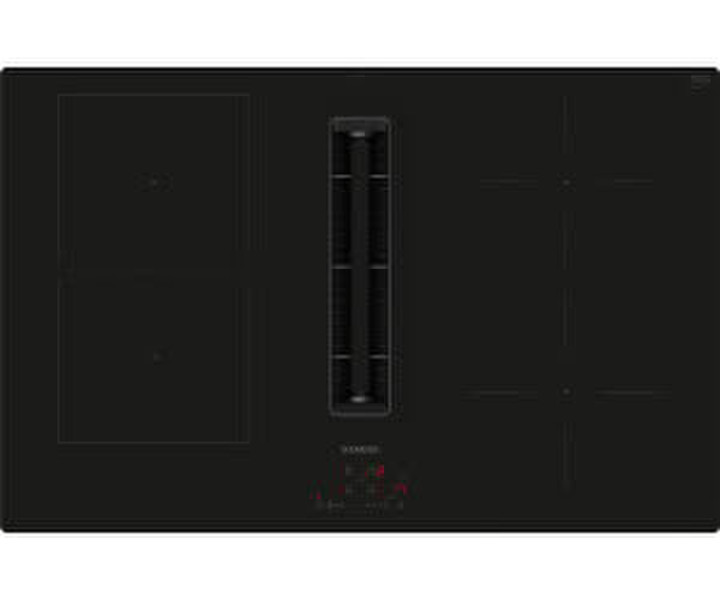

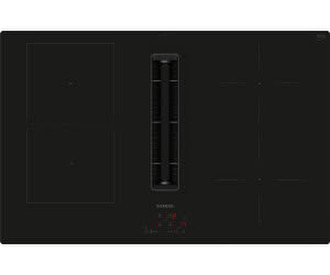

Siemens ED801BGA7 (ED801BS16E + HZ9VDSB2)

Cooktop types: Cooktop with extractor hood, induction cooktop, ceramic glass cooktop
Construction method: flush-mounted, self-contained, built-in appliance, frameless, centrally located extraction
Series: Siemens iQ300

Properties of the cooking zones
Number of cooking zones: 4
Type of cooking zones: Combination induction surface
Size of the 1st cooking zone: 19x21 cm
Power of the 1st cooking zone: 2.2/3.7 kW
Size of the 2nd cooking zone: 19x21 cm
Power of the 2nd cooking zone: 2.2/3.7 kW
Size of the 3rd cooking zone: 18 cm
Power of the 3rd cooking zone: 1.8/3.1 kW
Size of the 4th cooking zone: 21 cm
Power of the 4th cooking zone: 2.2/3.7 kW

Comfort & Safety
Functions: Main switch, fast heating, timer/clock, pan detection
Control elements: Touch Control
Position of the control element: front-arranged
Safety devices: Residual heat indicator, child lock, safety shut-off
Included accessories: Flat duct
Manufacturer-specific features: QuickStart, reStart

Technical Data
Connected load: 7.400 Watt
Power levels: 17
minimum countertop thickness: 1,6 cm
Power supplies: 220 - 240 V, 380 - 415 V
Cable length: 1.1 m
Plug type: without plug

Material & Design
Material: Glass ceramic
Color: black

Dimensions & Weight
Height: 22,7 cm
Width: 79,2 cm
Depth: 51,2 cm
Niche height: 22,7 cm
Niche width: 79,6 cm
Niche depth: 51,6 cm
Weight: 24,1 kg

Cooktop extractor
Cooktop extractor: Exhaust or recirculation operation possible
Energy efficiency class: B
Power consumption: 62 kWh/year
Fan efficiency class: A
Fat separation class: B
Operating noise: 69 dB

Further properties
Attention: The type of air guidance can be converted with special accessories!, Special accessories are required for the respective operating mode!
