Ports & interfaces
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| Number of HDMI outputs |
1 |
| HDMI in |
1 |
Weight & dimensions
| Transmitter dimensions (WxDxH) |
195 x 137 x 30 mm |
| Transmitter weight |
530 g |
| Receiver weight |
526 g |
| Receiver dimensions (WxDxH) |
195 x 137 x 30 mm |
Technical details
| Audio output channels |
2.0 channels |
| Wireless technology |
HDbitT |
| HDCP |
Y |
| Maximum transfer distance |
50 m |
| Type |
AV transmitter & receiver |
HDMI 1.3, HDCP 1.2, HDbitT, 50 m, 2-ch audio, 20-60Hz

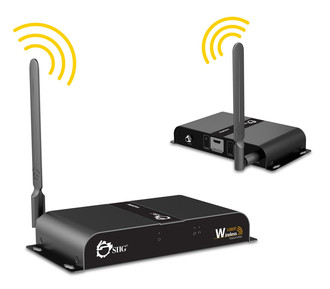

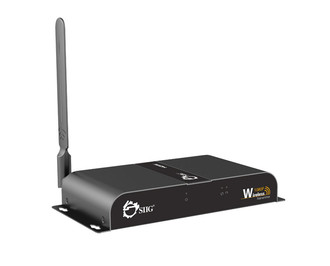

SIIG’s Wireless 1080P HDMI Video Kit - Mid-Range is designed to transmit HDMI audio/video signals wirelessly up to 165ft from a HDMI source to a remote display in line-of-sight environment. Full HD 1080p resolution is supported to deliver crystal clear images/videos. It also features built-in IR signal extension to enable remote controlling your source device. This wireless HDMI video kit is easy to setup, no software installation is required. It is an excellent HDMI extender solution for home entertainment, showroom and many more digital signage applications to wirelessly broadcast HDMI signals from a Blu-ray player, Set-top box, AV receiver, Cable/Satellite box or computer system to a remote display, saving the cost and time on cable or wire installation.
Features
- Compatible with HDMI 1.3 and HDCP 1.2 (High-bandwidth Digital Content Protection)
- Transmits HDMI A/V signals wirelessly up to 165ft through line-of-sight environment
- No complicated cable or wire installation needed
- Ideal solution to quickly setup your home entertainment system or remote display in apartments, condos and where wiring is prohibited, also great for digital signage, POP for small business office and showrooms
- Supports high-definition vivid video up 1080p@60Hz
- Works with most HDMI equipped devices including Blu-ray players, Set-top boxes, AV receivers, Cable/Satellite boxes and computer systems
- Built-in IR signal extension feature allows you to control the playback device remotely
- Plug-n-play installation, no software installation or Wi-Fi connection required
- Wall-mountable metal housing design provides multiple placement options for optimal signal broadcast or reception angles
