Siig CE-SD0111-S1 SDI video splitter

CE-SD0111-S1, 1x4 3G-SDI Splitter Overview

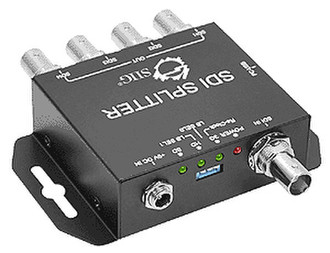

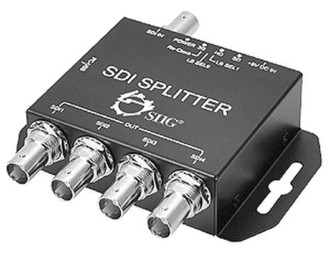

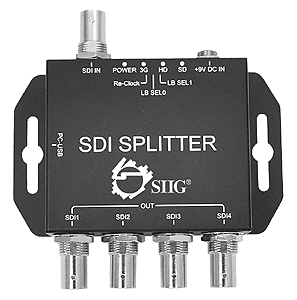

SIIG’s 1x4 3G-SDI Splitter replicates and distributes 3G-SDI signals from one SDI source to four SDI outputs. It operates at 270Mb/s, 1.485Gb/s and 2.97Gb/s data transfer rates and supports 525i and 625i SD format. Its metal housing provides better RF shielding for crystal clear data transmission, and efficient heat dissipation for durability and long life. The 1x4 3G SDI Splitter supports up to 8 channels of S/PDIF or I2S serial digital audio output at 48kHz sampling. This 3G SDI splitter is the easiest and most efficient solution for transmission of digital video and audio signals from a single SDI source to multiple high definition displays making video and audio more affordable and accessible.

The 1x4 3G-SDI Splitter is FCC approved, RoHs compliant, and is backed by SIIG’s limited 3-year warranty.
