Technical details
Maximum transfer distance |
330 m |
Type |
AV transmitter & receiver |
Cable types supported |
Cat5e, Cat6 |
Audio system |
stereo |
Ports & interfaces
RJ-45 output ports |
8 |
DC-in jack |
Y |
1x8 CAT5e/6 VGA Splitter with 5 receivers to support 5 LCDs with audio

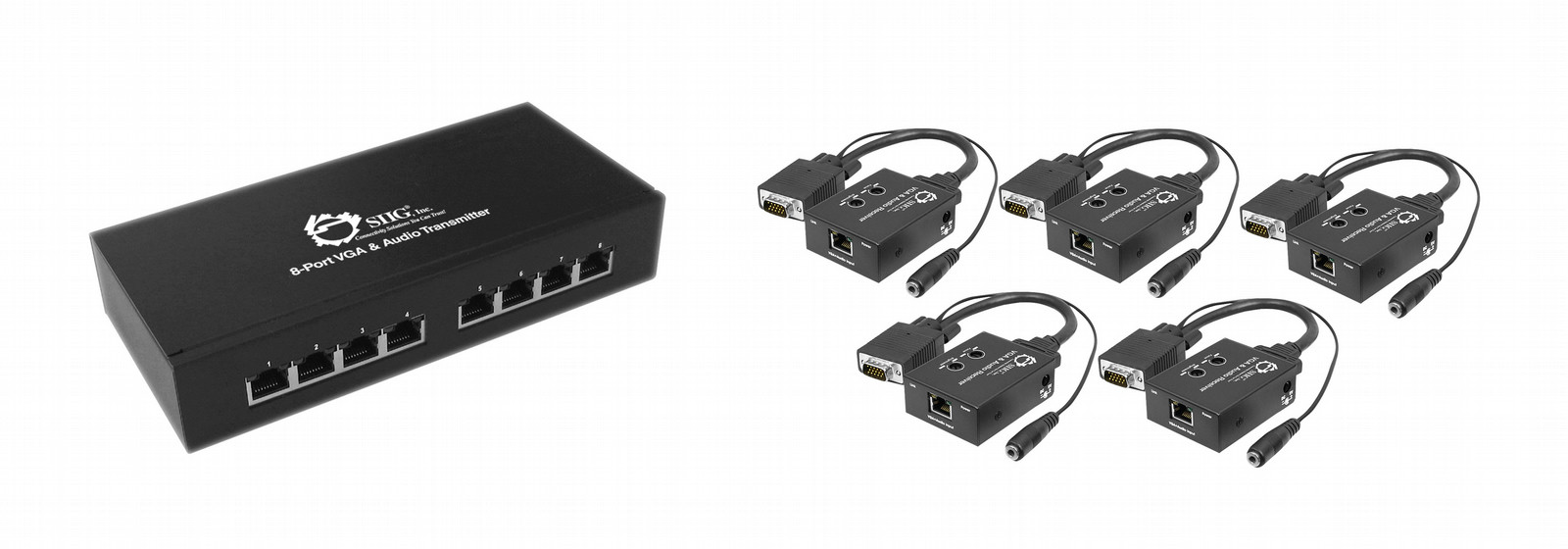

The SIIG VGA 5-Display Native Extender Kit is designed for digital signage environments requiring multiple displays, where the audience is decentralized in multiple area locations. This kit includes an 8-Port VGA & Audio Transmitter and five VGA & Audio Receiver units to enable A/V signal distribution to 5 LCDs or display monitors. With this kit, you can reliably duplicate and extend your high-definition analog signal with stereo audio over economical CAT5e/6 from a VGA source to multiple VGA displays in different locations.
The VGA 5-Display Native Extender Kit is FCC & CE regulatory approved, RoHS-compliant and backed by SIIG’s limited 3-year warranty.
KT-V5N011-S1 Product Features:
- 5 VGA & Audio Receivers (CE-VG0311-S1):
- Receives VGA video and stereo audio transmission over one economical CAT5/5e/6 cable
- Support 2-channel stereo audio
- Supports VGA, SVGA, XGA. SXGA and Multi-sync monitors
- Distance: up to 1080ft (330m) @ 800x600 resolution
- Resolution: up to 1920 x 1200 @ 246ft
- Includes: Power adapter, quick installation guide
- 8-Port VGA & Audio Transmitter (CE-VG0211-S1):
- Transmits VGA video and stereo audio transmissions to 8 (max) remote displays over economical CAT5/5e/6 cables
- Transmitters can be cascaded to connect to more displays & speakers
- Supports 2-channel stereo audio
- Supports VGA, SVGA, XGA, SXGA and Multisync monitors
- Distance: up to 1080ft (330m) @ 800 x 600 resolution
- Resolution: up to 1920 x 1200 @ 246ft
- Includes: VGA cable (M-F), Audio cable (M-M), power adapter, Quick installation guide
