Technical details
| Ethernet LAN data rates |
100, 10 Mbit/s |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232C |
Protocols
| Supported network protocols |
TCP/IP |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

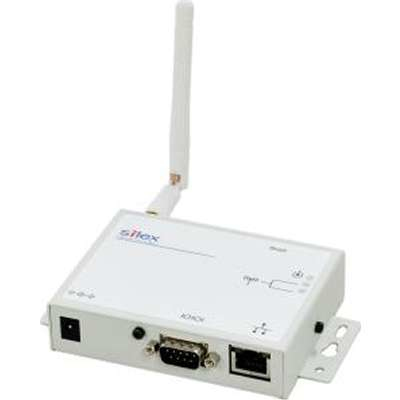

10/100 LAN, IEEE802.11a/b/g/n, RS-232C, 2.5W, DC5V/0.5A
- Easily connect and share RS-232 serial devices on wired or wireless networks. Access, monitor and control equipment over Ethernet or Wi-Fi
- Multiple Serial Port Modes
- Serial Port Emulation Mode: The included Silex SX-Virtual Link software precisely emulates a serial port (or COM port) connection on a computer operating system, and then redirects the packets over the network to the serial port of the SD-300/SD-310AN.
- Raw TCP Connection Mode: This mode makes it possible to possible to directly communicate with a serial device via TCP application program using a TCP socket API.
- eCable Mode: Serial data can be tunneled over the network between devices connected to SD-300/SD-310AN.
- eless Modes
- Wired Mode: The SD-300 and SD-310AN are equipped with an autosensing 10/100 Ethernet port. SD-300 is wired only. SD-310AN can also operate in wired mode to connect to the Ethernet network.
- Wireless Station (Client) Mode: The SD-310AN can connect to an existing 802.11a/b/g/n Wi-Fi network. The dual band capability and enterprise security ensure a stable connection to even the most advanced wireless networks.
- Wireless Access Point Mode: The SD-310AN can create a wireless network so any wireless client (station) can easily make a direct secure connection.
- SD-310AN additional features:
- Dual band IEEE 802.11a/b/g/n support on the SD-310AN allows communication in the 2.4 GHz and 5 GHz bands. Radio interference in the commonly used 2.4 GHz band can be avoided by utilizing 5 GHz.
- SD-310AN provides optimized roaming based on a signal strength algorithm between wireless access points ensuring maximum uptime for the connection.
