Wireless LAN features
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11a |
| Wi-Fi |
Y |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11ac |
Networking
| Frequency band |
2.412 - 5.825 GHz |
| Modulation |
16-QAM, CCK, DQPSK, 256-QAM, BPSK, DBPSK, QPSK |
Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
Additionally
| Transfer rate (Mbps) |
866.7 Mbit/s |
| Wireless technologies |
Wireless |
802.11 ac/a/b/g/n, Mini PCI-E, 2.4 GHz, 5GHz, 866.7 Mbps, WEP, TKIP, AES, WPA, WPA2, 2T2R, 7 g
- IEEE 802.11ac/a/b/g/n
- Supports 2T2R dual band(2x2 MIMO)
- Mini PCI-E interface

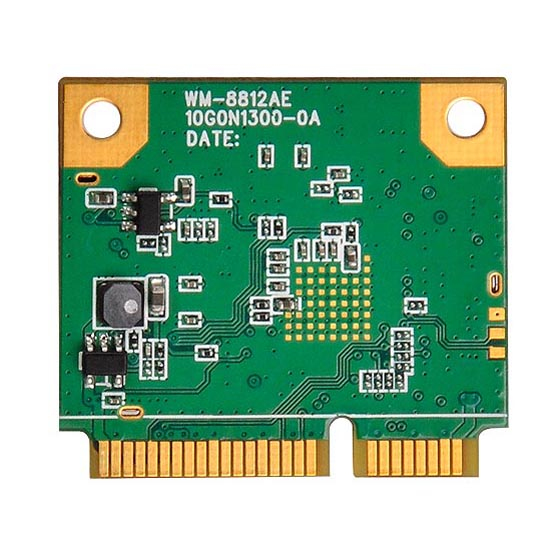

The SilverStone ECW02 is a Wi-Fi mini PCI-E expansion module with high-speed 802.11ac specifications. It has IEEE 802.11ac and 2T2R dual band(2x2 MIMO) to easily provide high-speed wireless internet performance similar to gigabit wired network for connecting to mobile devices and accessories. For users wanting faster wireless capability on mini PCI-E enabled Ultrabook, laptop or desktop, the ECW02 is an ideal solution.
