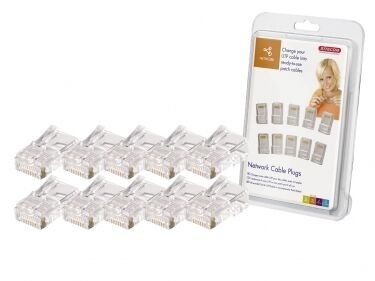

Sitecom Network cable plugs 10 pcs RJ-45 wire connector

Sitecom Network cable plugs 10 pcs RJ-45 wire connector

MPN: LN-228
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Technical details

Technology UTP
Network cable plugs 10 pcs These RJ45 connectors are standard Ethernet connectors for use in home or office networks. By attaching the connectors to UTP cable, you can create patch cables for interconnecting your PCs and other network devices.

Electrical Characteristics:
- Current Rating: 1.5 Amps.
- Voltage Rating: 30 VAC/42 VDC.
- Dielectric withstanding: 1000V Rms, 1 min, (60HZ).
- Insulation Resistance: 500 Megohms. Min.
- Contact Resistance: 20 Milliohms. Max.

Materials and Finish:
- Contact: Phosphor bronze, selective gold plated in contact area over 100 micro-inches nickel plated.
- Housing: Polycarbonate, UL94V-0, UL94V-2.
- Shield: Nickel plated, brass.

- Meets EIA/ TIA TSB 40-A test performance.
- Dual point contact terminates 24-26 ASW stranded & solid conductors.
- Available in non-shielded and shielded configurations to control EMI/RFI.
- Speeds up to 100MHZ.
