Management features
| Multicast support |
Y |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
Data transmission
| MAC address table |
8192 entries |
| Switching capacity |
56 Gbit/s |
| Number of trunks |
32 |
| Number of VLANs |
4096 |
| Number of queues |
8 |
| Throughput |
41.7 Mpps |
Other features
| Authentication method |
RRADIUS, TACACS+ |
Networking
| VLAN support |
Y |
| IGMP snooping |
Y |
| Rate limiting |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Console port |
RS-232 |
| Combo SFP ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
24 |
Performance
| Packet buffer memory |
1.75 MB |
Protocols
| Management protocols |
SNMP, Telnet, RMON |
Design
| Form factor |
1U |
| Rack mounting |
Y |
Security
| Access Control List (ACL) |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

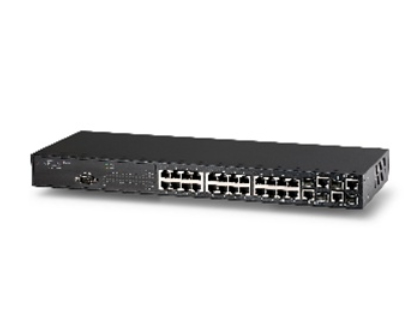

28-port L2 Managed Gigabit Ethernet Standalone Switch w/ 4 x SFP Combo
The Edge-corE ES4524D has been replaced with the Edge-corE ES4528V, a 28-port L2 Managed Gigabit Ethernet Standalone Switch with four ports that have SFP slots.
The Edge-corE ES4528V provides a quite, cost-effective L2 Gigabit Ethernet switch for bandwidth-intensive networks that require real time performance with features such as wire-speed performance in full duplex capacity across all ports, dynamic 802.3ad link aggregation, full iPv6 support, enhanced security, high availability and advance QoS to the network edge while maintaining the simplicity of traditional LAN switching. The ES4528V has a comprehensive array of LEDs to provide network monitoring at a glance and has an improved configuration and management interface with hyperlinks.
