Power
| External power adapter |
Y |
| Current |
0.5 A |
| Operating voltage |
5 V |
Technical details
| Wi-Fi |
N |
| Maximum transfer distance |
300 m |
| Type |
AV receiver |
| Cable types supported |
Cat5e, Cat5, Cat7, Cat6 |
Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| DC-in jack |
Y |
| RJ-45 input ports |
1 |

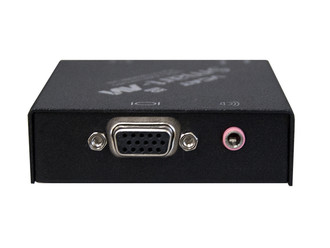

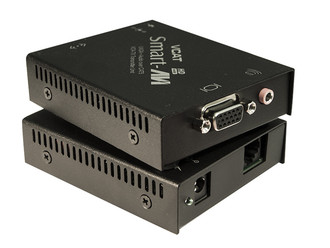

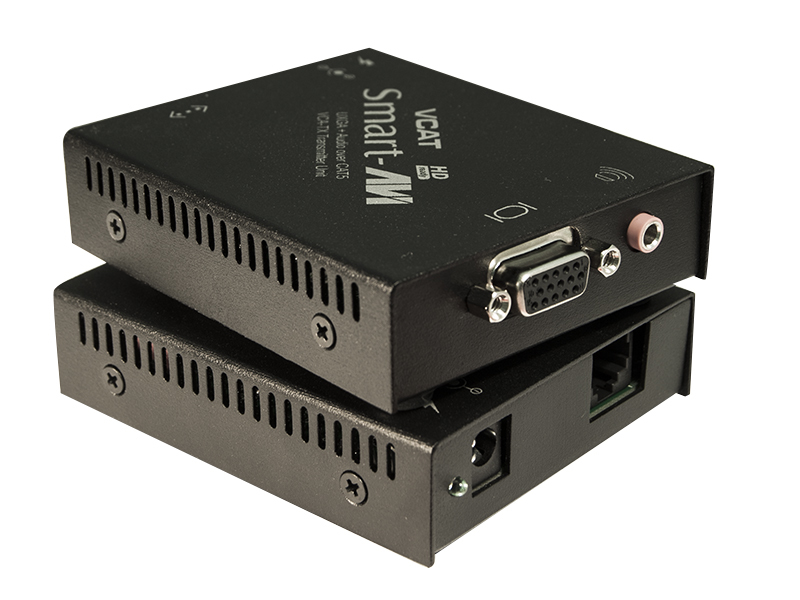

VCAT UXGA/Audio CAT5 Receiver, VGA, Audio, 1920 x 1200, 300m Max
Use a single CAT5 cable to extend high-resolution VGA video extender (supports WUXGA) and stereo audio 1,000 feet away, at the most affordable price on the market.
- Uses easy to install, inexpensive CAT-5/5e/6/7/8.
- Output reaches up to 1,000 feet (300m).
- Supports high resolution clear video up to 1920x1200.
- HDTV compatible (720p, 1080i,1080p).
- 300 MHz Bandwidth.
- Sends high-resolution XVGA and Stereo Audio signals.
- Compatible with VGA, XGA, Sun, MAC and SGI Signals.
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in lightning, power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact metal case enclosure.
- Optional power supply for remote unit.
- Remote Units come with Buffered Outputs.
