Security
| Firewall security |
NAT + SPI, DoS |
| VPN support |
IPSec, PPTP, LT2P Pass-Through |
Other features
| Supported data transfer rates |
WLAN: 1 - 54 Mbps |
| Maximum data transfer rate |
0.054 Gbit/s |
| Management platform |
Web-based |
| Bandwidth |
2.412 GHz |
| Outdoor range |
400m |
| Networking features |
Fast Ethernet, Wireless LAN |
| Data transfer rate |
100 Mbit/s |
Antenna
| Antenna gain level (max) |
2 dBi |
Protocols
| Supported network protocols |
UPnP, SNMP, L2TP, PPTP |
Wireless LAN features
| Channels quantity |
13 channels |

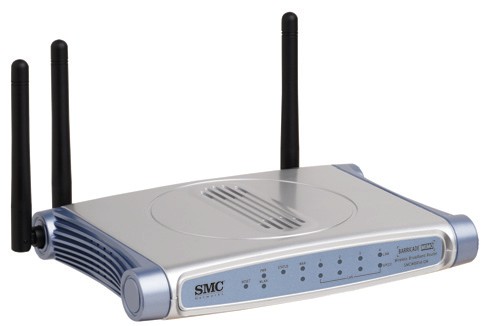

Barricade MIMO 802.11g Wireless Broadband Router
The Barricade™ g MIMO Wireless Cable/DSL Broadband Router (SMCWBR14-GM) is the perfect networking solution for the user that is looking for a simple, all-in-one home or small office network product. MIMO technology significantly improves the performance and range of your wireless network by using multiple smart antennae to transmit and receive the radio streams. This platform independent multi-functional router combines a 4-port 10/100 Mbps dual-speed switch with Automatic MDI-MDIX feature, a high speed 54Mbps wireless access point, Stateful Packet Inspection (SPI) firewall security, Web-based network management, and support for Virtual Private Network (VPN) pass-through into one convenient device. The Barricade MIMO offers a high data rate that is significantly faster than the widely used 802.11b wireless LAN and is backward compatible with existing 802.11b/g network devices. For wireless connectivity, the SMCWBR14-GM offers up to 54Mbps high-speed wireless connection. To secure this wireless connection, the Barricade g supports 802.1x for authentication, Wi-Fi Protected Access (WPA and WPA2), MAC address filtering and 64/128-bit Wired Equivalent Privacy (WEP).
