Bandwidth
| Supported data transfer rates |
96, 72, 54, 48, 36, 24. 18, 12, 9, 6 Mbps |
Protocols
| Media access protocol |
CSMA/CA |
Other features
| Link/Act LED |
Y |
| Transmitter output power |
15-20 |
| Compliance industry standards |
IEEE802.11a/b/g, IEEE802.1x |
| Operating temperature (T-T) |
32 - 158 °F |
Ports & interfaces
| Host interface |
PCI |
| PCI Bus |
32-Bit |
| Internal |
Y |
Power
| TX power consumption |
700 mA |
| RX power consumption |
300 mA |
| Power consumption |
50 mA |
Networking
| Maximum operating distance |
650 m |
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK |
| Frequency band |
2.4 GHz |
Additionally
| Transfer rate (Mbps) |
108 Mbit/s |
| Wireless connections |
Y |
| Wireless technologies |
Wireless |

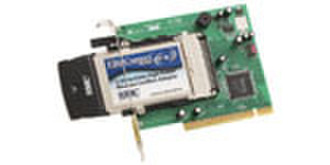

EliteConnect PCI Card, 2.4GHz/5GHz, Wireless, PCI Card
The SMC EliteConnect Universal provides the highest wireless performance in both operating range and bandwidth. While the SMC EliteConnect Wireless PCI Card is compatible with 802.11a/b/g, it also has a specialized turbo mode for 802.11a that provides blistering bandwidth up to 108 Mbps, the highest in the market. With an extended reach of 2,145 feet, the EliteConnect provides significant freedom in mobility. Security is paramount, supporting Wi-Fi Protected Access (WPA), 64-/128-/152-bit Wired Equivalent Privacy (WEP) encryption, 802.1x, and various Extensible Authentication Protocols (EAPs) for user authentication to ensure only authorized users can access the resources of the wireless network. The numerous software utilities include EZ Installation Wizard for quick and easy setup, a built-in utility program for scanning all available Wireless Access Points on the network, and profile-management software to save multiple wireless settings corresponding to different locations or networks.
