Performance
| VLAN support |
Y |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Number of users |
64 user(s) |
| Web-based management |
Y |
| Frequency band |
2.4/5 GHz |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Ports & interfaces
| Interface |
RJ-45 |
| DC-in jack |
Y |
Protocols
| Management protocols |
SNMP v1/v2c/v3, TFTP, FTP, HTTP, SNTP |
Other features
| Wireless technology |
802.11 a/b/g/n |
| Power LED |
Y |
| Networking features |
Gigabit Ethernet |
Antenna
| Antenna type |
Omni Direction |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
3 |
Power
| Power over Ethernet (PoE) |
Y |
| Power supply type |
AC |
Additionally
| Output power |
48V |
| Transfer rate (Mbps) |
300 Mbit/s |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

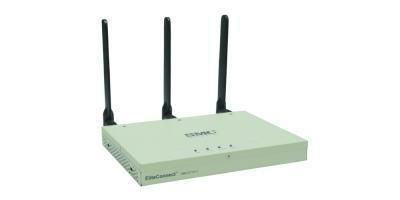

EliteConnect Wireless - 802.11 a/b/g/n, Gigabit Ethernet, RJ-45, 2.4/5.0 Ghz, 1200g, White
Overview
The EliteConnect™ Wireless Enterprise Access Point (SMCE21011) is based on IEEE 802.11n and offers data rates of up to 300Mbps either in the 2.4GHz or 5GHz frequency band. The dual-band, single radio Wireless Access Point uses MIMO technology to provide robust and high performance data transmission and increase wireless coverage for enterprise networks. Supporting up to eight Virtual Access Point (VAP) interfaces, the SMCE21011 allows traffic to be separated for different user groups within the same access point service area. Each VAP can be configured with its own Service Set Identification (SSID), security settings, VLAN assignments, and other parameters. It comes with three detachable dual-band antennas to provide optimal wireless coverage and support for IEEE802.3af Power over Ethernet (PoE) to allow Wi-Fi deployment where power outlets are not available. SMCE21011 provides enterprise level security features such as personal and enterprise versions of WPA/WPA2 (IEEE 802.11i), RADIUS Authentication, Access Control list (ACL), Wireless LAN segmentation and Disable SSID Broadcast. For simplified network management, multiple management options are available, including Web (HTTP), Secure HTTP (HTTPS), Secure Sockets Layer (SSL), Secure Shell (SSH), and Telnet.
description
The EliteConnect™ Wireless Enterprise Access Point (SMCE21011) is based on IEEE 802.11n and offers data rates of up to 300Mbps either in the 2.4GHz or 5GHz frequency band. The dual-band, single radio Wireless Access Point uses MIMO technology to provide robust and high performance data transmission and increase wireless coverage for enterprise networks. For simplified network management, multiple management options are available, including Web (HTTP), Secure HTTP (HTTPS), Secure Sockets Layer (SSL), Secure Shell (SSH), and Telnet.
