Antenna
| Gain |
2 dBi |
| Antenna type |
External |
Ports & interfaces
| Host interface |
PCI |
| Internal |
Y |
| Slot type |
32-bit PCI |
Other features
| Outdoor range |
350m |
| Compliance industry standards |
IEEE 802.11g, IEEE 802.11b |
| Channels quantity |
13 channels |
Networking
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, QPSK |
| Frequency band |
2.4 GHz |
Additionally
| Indoors max range |
100m |
| Output power |
Max: 15 dBm |
| Transfer rate (Mbps) |
108 Mbit/s |
| Wireless technologies |
Wireless |

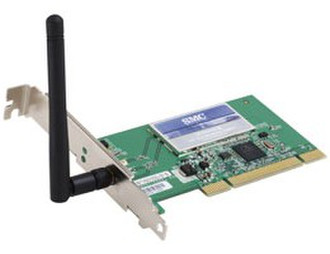

EZ Connect™ g 802.11g 108Mbps PCI Wireless Adapter
The 802.11g 108Mbps PCI Wireless Adapter (SMCWPCIT-G) is another
cutting edge introduction in 2.4GHz wireless communication for your desktop computer. Designed for both business and home users, this new PCI adapter provides the speed, coverage,and security expected by today’s wireless users. Based on the IEEE 802.11g standard, the new EZ Connect g Wireless PCI Card is 15 times faster than the widely used 802.11b wireless networking devices and is 100% compatible with existing 802.11b wireless networks. The SMCWPCIT-G is extremely fast and can handle streaming video, multimedia and all otherbandwidth-intensive applications. Wireless clients can now easily obtain instant, seamless high-speed network connection. The new and improved SMCWPCIT-G significantly increases the performance of mixed-mode (802.11b and 802.11g) networks and 802.11g-only networks-up to 3x more throughput in mixed-mode networks and up to 50% throughput improvement
in 802.11g-only networks. It also increases the rangeand provides
extended coverage in your home or office.
The EZ Connect™ g Wireless PCI Card includes an EZ Installation Wizard
that enables quick and easy setup. Simply put the EZ Installation Wizard CD into your CD-ROM drive, click on Install Driver/Utility link, the wizard will perform the installation automatically. Then plug in your EZ Connect g Wireless PCI Card into the desktop computer, you are now ready to enjoy the freedom of wireless networking.
The new SMCWPCIT-G EZ Connect g Wireless PCI Card offers high-speed
data rate at up to 108Mbps. This adapter provides a high level of
security by supporting both 64/128-bit WEP encryption and the new
Wi-Fi Protected Access (WPA). It also supports 802.1x for user
authentication to ensure only authorized users can access the resources
of the wireless network. Moreover, profile management software allows
the new wireless notebook adapter the ability to save multiple
wireless settings corresponding to different locations or networks.
Furthermore, SMCWPCIT-G has a built-in utility program for scanning all
available Wireless Access Points on the network. Combine all of these
features with our free 24/7 technical support and you have a state-ofthe- art, technologically advanced wireless adapter to seamlessly integrate into a new or existing wireless network.
