Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
48 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Other features
| Connectivity LEDs |
Y |
| Electromagnetic emissions |
FCC A, CISPR A, EN, VCCI A |
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| Power LED |
Y |
| Networking features |
Gigabit Ethernet |
Networking
| Port mirroring |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| DC-in jack |
Y |
| SFP/SFP+ slots quantity |
4 |
| Combo SFP ports quantity |
4 |
Performance
| Packet buffer memory |
0.400 MB |
Protocols
| Management protocols |
HTTP |
Design
| Safety |
CSA/CUS, TUV/GS, CB |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

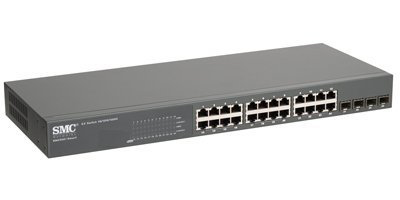

Smart EZ Switch - 24-Port RJ-45, Gigabit Ethernet, 48Gbps, 3720g, Grey
Overview
SMC Networks' EZ Switch 10/100/1000 (SMCGS24C-Smart) is a 24-port gigabit smart switch with 4 combo ports that bring the speed of gigabit copper to the desktop with the added flexibility of fiber. SMCGS24C-Smart provides a flexible web based management interface to enable the configuration of switch features, port settings including security, QoS with 4 priority queues, link aggregation and VLAN's. These features allow traditionally unmanaged networks to increase throughput and flexibility. Security is becoming critical in next generation networks so this switch has added security features to protect your network. Ideal for users looking to migrate from unmanaged to managed networks, this Smart switch is easy to install and provides 10 times the throughput than 100M switches. The SMCGS24C-Smart switch is a perfect solution for enterprise and SOHO businesses.
description
SMC Networks' EZ Switch 10/100/1000 (SMCGS24C-Smart) is a 24-port gigabit smart switch with 4 combo ports that bring the speed of gigabit copper to the desktop with the added flexibility of fiber. SMCGS24C-Smart provides a flexible web based management interface to enable the configuration of switch features, port settings including security, QoS with 4 priority queues, link aggregation and VLAN's. These features allow traditionally unmanaged networks to increase throughput and flexibility.
