Data transmission
MAC address table |
4 entries |
Store-and-forward |
Y |
Supported data transfer rates |
10/100/1000 Mbps |
Switching capacity |
16 Gbit/s |
Maximum data transfer rate |
1 Gbit/s |
Other features
Connectivity LEDs |
Y |
Electromagnetic emissions |
FCC A, CISPR A, EN, VCCI A |
Non-operating relative humidity (non-condensing) |
10 - 90% |
Networking features |
Gigabit Ethernet |
Power LED |
Y |
Networking
Port mirroring |
Y |
IGMP snooping |
Y |
Rate limiting |
Y |
Full duplex |
Y |
Security
Static port security |
Y |
MAC address filtering |
Y |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
8 |
DC-in jack |
Y |
Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
SFP/SFP+ slots quantity |
1 |
Protocols
Management protocols |
HTTP |
Management features
Web-based management |
Y |
Quality of Service (QoS) support |
Y |
Operational conditions
Operating temperature (T-T) |
32 - 114 °F |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
Y |
Additionally
Jumbo Frames support |
Y |
Wireless technologies |
Wired |

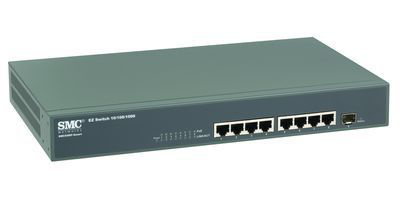

Smart EZ Switch - 8-Port RJ-45, Gigabit Ethernet, 16Gbps, 2060g, Grey
Overview
The SMC EZ Switch™ 10/100/1000 (SMCGS8P-Smart) is an 8-port 10/100/1000 Gigabit smart switch with PoE that brings the speed of Gigabit Ethernet to the desktop and the flexibility of PoE. Equipped with 8 auto- MDIX ports and 1 combo SFP port this Gigabit switch is suitable for enterprise or SMB environments that demand high performance and flexible PoE installation. Power over Ethernet enables you to install wireless access points, IP cameras or VOIP phone systems without the need to run extra power sockets. The SMCGS8P-Smart also provides a flexible web based management interface to enable the configuration of switch features, port settings including security, QoS with 4 priority queues, link aggregation, VLAN’s and PoE. These features allow traditionally unmanaged networks to increase throughput and flexibility.
description
The SMC EZ Switch™ 10/100/1000 (SMCGS8P-Smart) is an 8-port 10/100/1000 Gigabit smart switch with PoE that brings the speed of Gigabit Ethernet to the desktop and the flexibility of PoE. Equipped with 8 auto- MDIX ports and 1 combo SFP port this Gigabit switch is suitable for enterprise or SMB environments that demand high performance and flexible PoE installation.
