Data transmission
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100 Mbps |
| Switching capacity |
0.1 Gbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
Other features
| Connectivity LEDs |
Y |
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| Networking features |
Fast Ethernet |
| Power supply type |
AC/DC |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| DC-in jack |
Y |
Performance
| Packet buffer memory |
1 MB |
| Stackable |
Y |
Power
| Input voltage |
9 V |
| Input current |
0.8 A |
Operational conditions
| Operating temperature (T-T) |
32 - 113 °F |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

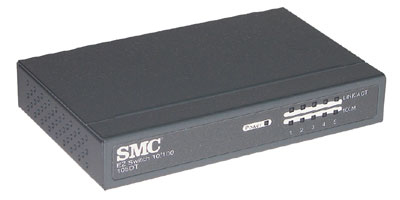

SMC105DT, 5xRJ-45, Fast Ethernet, 1MB, Black
The SMC105DT is a 5-port plug-and-play dual-speed 10/100 Ethernet auto-negotiating switch designed to bring switching to the small office and small business. The SMC105DT lets you give users dedicated switched performance on each port, at either 10 or 100 Mbps. An individual port can connect to either an Ethernet or Fast Ethernet device. Auto-negotiation automatically determines the transmission speed and duplex mode of the attached device on each port. This diminutive switch also supports features found on larger switches, such as half- and full-duplex operation, and store-and-forward architecture with back pressure and flow control to ensure low latency and high data integrity. Installation is simple and flexible. With the unique mounting kit, you can attach the switch easily to any metal surface using the supplied magnets or onto any other solid surface, either horizontally or vertically. The SMC105DT is backed by a Limited Lifetime warranty and free, toll-free technical support.
