Data transmission
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
17.6 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Other features
| Packet transfer speed |
13 Mpps |
| Connectivity LEDs |
Y |
| Electromagnetic emissions |
FCC Class A; Industry Canada Class A; EN55022 (CISPR 22) Class A; EN 61000-3-2/3; VCCI Class A; EN 61000-4-2/3/4/5/6/8/11 |
| Management platform |
Telnet, SLIP, SNMP |
Management features
| MIB support |
MIB II (RFC 1213), Bridging MIB (RFC 1493), Ethernet-Like MIB (RFC 2665), Bridge MIB Extensions (RFC 2764), RMON MIB (RFC 1757), RFC 2737, RFC 2742, RFC 2021, RFC MIB II (RFC 1213), MIB (RFC 1493), MIB (RFC 2665), MIB (RFC 2764), RMON MIB (RFC1757), RFC 2737, RFC 2742, RFC 2021, RFC 2863, RFC 2618, SMC pMIB |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Security
| Static port security |
Y |
| MAC address filtering |
Y |
| SSH/SSL support |
Y |
| Access Control List (ACL) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Console port |
RS-232 |
| Gigabit Ethernet (copper) ports quantity |
4 |
Performance
| Packet buffer memory |
0.5 MB |
| Stackable |
Y |
Design
| Safety |
UL / CUL (UL 60950-1, CSA 22.2 NO60950-1); TUV/GS (EN60950-1); CB (IEC60950-1) |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Protocols
| Supported network protocols |
(802.1D, .1w); 802.1Q/v |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

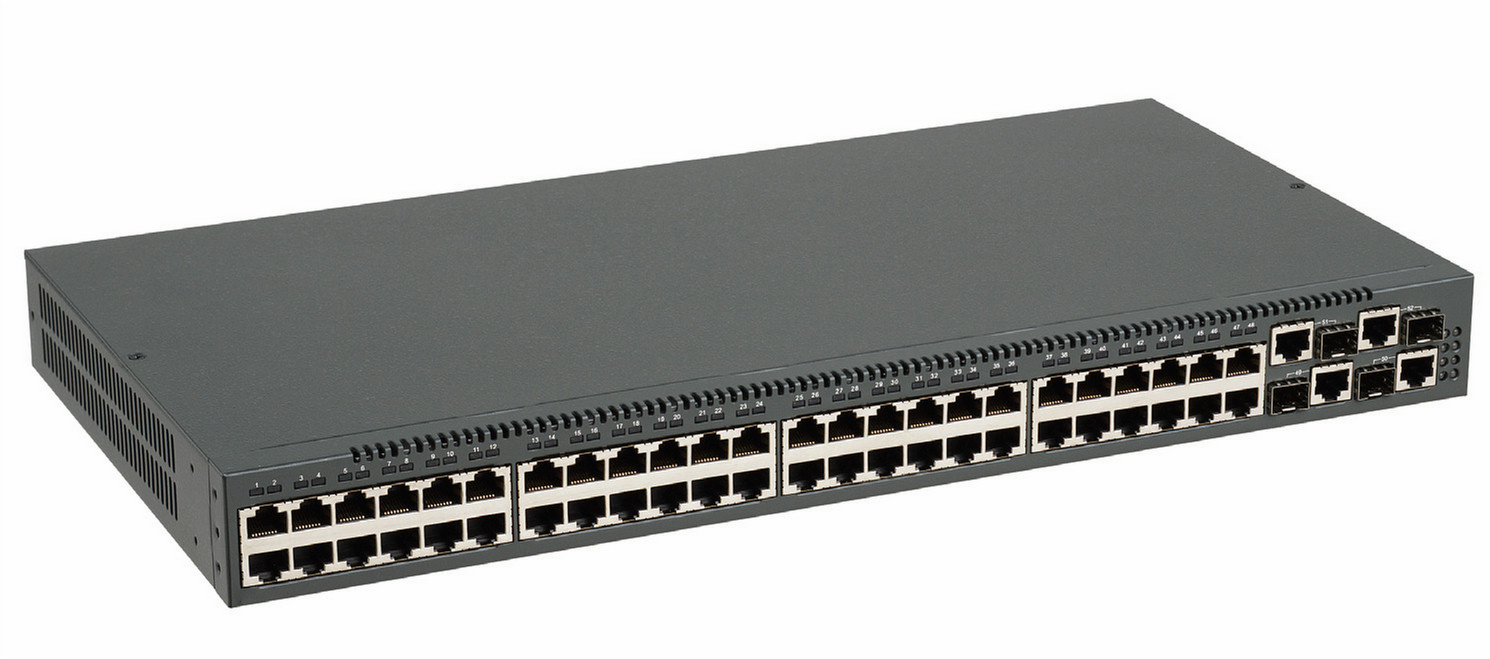

SMC6152L2 UK
The SMC6152L2 provides wire speed 10/100 Fast Ethernet switching with features specifically designed for SMB workgroup environments. The switch has 4 built in Gigabit ports providing enhanced uplink capabilities. An integrated part of this switch family is the IP Clustering function. The feature allows customers to group together up to 32 switches into a single logical group which can be managed using a single IP address. The switch features advanced Quality of Service features that can reduce the latency of packets through the network, with specific traffic prioritization improving the delivery of converged data such as voice and high quality video over IP. Other standard features included are Spanning Tree and IGMP for protecting your network against loops and managing your IP multicasts enhances the productivity and problem free networking. The gigabit ports are 4 Combo gigabit ports (RJ-45/SFP). Overall this switch is part of flexible switch family which brings PoE and non-PoE switches to the edge of the network.
