Data transmission
| Store-and-forward |
Y |
| Maximum data transfer rate |
0.1 Gbit/s |
| Number of VLANs |
255 |
Performance
| Packet buffer memory |
3 MB |
| Stackable |
N |
Management features
| Web-based management |
Y |
| MIB support |
MIB II (RFC 1213)/Bridging MIB (RFC 1493)/Ethernet-Like MIB (RFC 2665)/Bridge MIB Extensions (RFC 2764)/RMON MIB (RFC1757)/RFC 2737/RFC 2742/RFC 2021/RFC 2863/RFC 2618/SMC's private MIB |
Power
| Input current |
0.25 A |
| Output power |
15.4 W |
Other features
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| Optional transceivers |
SX,/LX/ZX SFP |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
Design
| Safety |
UL / CUL (UL 60950-1, CSA 22.2 NO60950-1)/TUV/GS (EN60950-1)/CB (IEC60950-1)/CSA/CUS (CSA 22.2. NO 60950-1 & UL60950-1) |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |

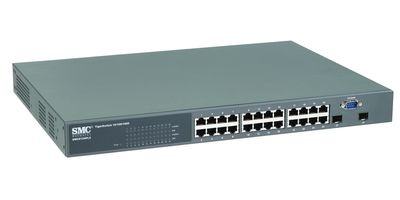

TigerSwitch SMC8124PL2 24-port 10/100/1000 Managed Switch with PoE, IP Clustering and 2 Gigabit combo ports.
Overview
SMC’s TigerSwitch 10/100/1000 SMC8124PL2 is an intelligent Layer 2 PoE switch with 24 10/100/1000BASE-T ports, two of which are combo ports that are shared with two SFP transceiver slots. The IEEE 802.3af Power over Ethernet operates on all 10/100/1000 ports enabling IP phones or cameras to be installed without the need for extra power cables. Also it is comes installed with clustering software which will enable grouping together of up to 32 of other SMC6100 and SMC8100 switches. This 10/100/1000 workgroup edge switch is designed to provide a flexible management architecture including clustering but with the added benefit of PoE. It is capable of reaching up to 48Gbps with a non-blocking single chip switching architecture. It provides cost-effective, Ethernet switching for bandwidth-intensive networks that require advanced switching features to ensure smooth transmission of mission critical data. The comprehensive security features include RADIUS, IEEE802.1x, SSH, SSL,TACACS+, and ACL. High port -density and 1U high, this switch is ideal for SMB workgroup installations which need the benefits of PoE.
- SMC’s TigerSwitch 10/100/1000 SMC8124PL2 is an intelligent Layer 2 PoE switch with 24 10/100/1000BASE-T ports, two of which are combo ports that are shared with two SFP transceiver slots. The IEEE 802.3af Power over Ethernet operates on all 10/100/1000 ports enabling IP phones or cameras to be installed without the need for extra power cables.
- SMC’s TigerSwitch 10/100/1000 SMC8124PL2 is an intelligent Layer 2 PoE switch with 24 10/100/1000BASE-T ports, two of which are combo ports that are shared with two SFP transceiver slots. The IEEE 802.3af Power over Ethernet operates on all 10/100/1000 ports enabling IP phones or cameras to be installed without the need for extra power cables. Also it is comes installed with clustering software which will enable grouping together of up to 32 of other SMC6100 and SMC8100 switches.
