Data transmission
| Store-and-forward |
Y |
| Switching capacity |
48 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Number of VLANs |
255 |
Other features
| Packet transfer speed |
35.7 Mpps |
| Connectivity LEDs |
Y |
| Management platform |
Telnet, SLIP, HTTP, SNMP |
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| Optional transceivers |
SX/LX/ZX SFP |
Management features
| MIB support |
MIB II (RFC 1213)/Bridging MIB (RFC 1493)/Ethernet-Like MIB (RFC 2665)/Bridge MIB Extensions (RFC 2764)/RMON MIB (RFC1757)/RFC 2737/RFC 2742/RFC 2021/RFC 2863/RFC 2618/SMC's private MIB |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Networking
| Port mirroring |
Y |
| Spanning tree protocol |
Y |
Security
| Static port security |
Y |
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Combo SFP ports quantity |
2 |
| SFP/SFP+ slots quantity |
2 |
Design
| Safety |
UL/CUL (UL 60950-1, CSA 22.2 NO60950-1)/TUV/GS (EN60950-1)/CB (IEC60950-1)/CSA/CUS (CSA 22.2. NO 60950-1 & UL60950-1) |
Power
| Input current |
3 A |
| Output power |
15.4 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |

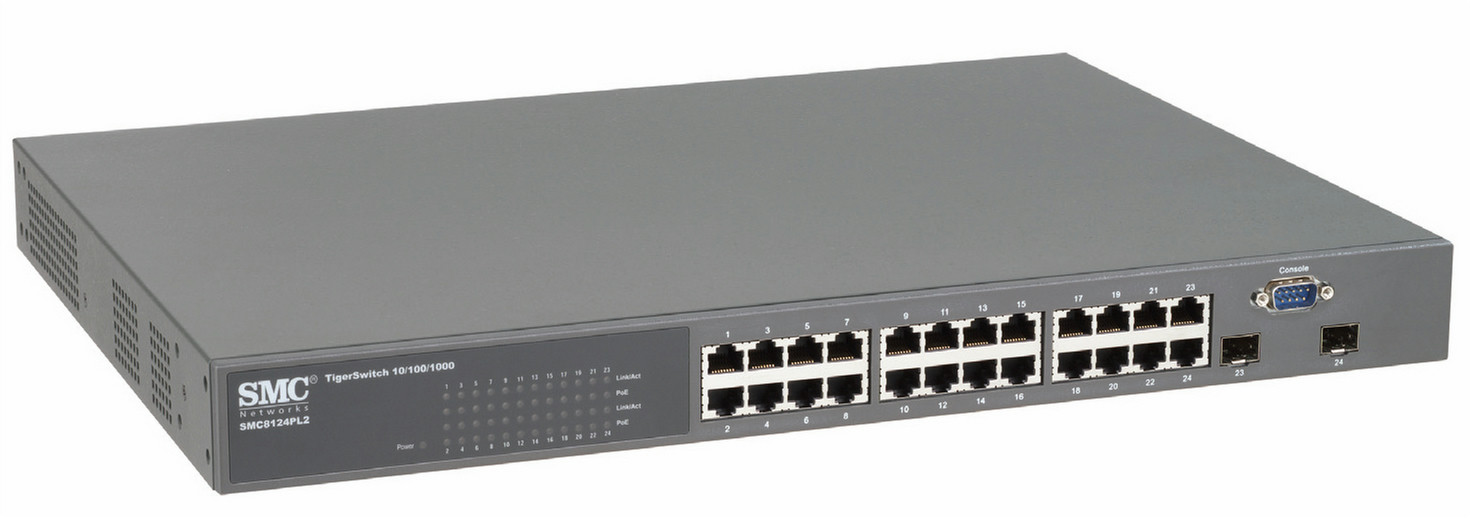

SMC8124PL2 UK
SMC’s TigerSwitch 10/100/1000 SMC8124PL2 is an intelligent Layer 2 PoE switch with 24 10/100/1000BASE-T ports, two of which are combo ports that are shared with two SFP transceiver slots. The IEEE 802.3af Power over Ethernet operates on all 10/100/1000 ports enabling IP phones or cameras to be installed without the need for extra power cables. Also it is comes installed with clustering software which will enable grouping together of up to 32 of other SMC6100 and SMC8100 switches. This 10/100/1000 workgroup edge switch is designed to provide a flexible management architecture including clustering but with the added benefit of PoE. It is capable of reaching up to 48Gbps with a non-blocking single chip switching architecture. It provides cost-effective, Ethernet switching for bandwidth-intensive networks that require advanced switching features to ensure smooth transmission of mission critical data. The comprehensive security features include RADIUS, IEEE802.1x, SSH, SSL,TACACS+, and ACL. High port -density and 1U high, this switch is ideal for SMB workgroup installations which need the benefits of PoE.
- SMC’s TigerSwitch 10/100/1000 SMC8124PL2 is an intelligent Layer 2 PoE switch with 24 10/100/1000BASE-T ports, two of which are combo ports that are shared with two SFP transceiver slots. The IEEE 802.3af Power over Ethernet operates on all 10/100/1000 ports enabling IP phones or cameras to be installed without the need for extra power cables.
- SMC’s TigerSwitch 10/100/1000 SMC8124PL2 is an intelligent Layer 2 PoE switch with 24 10/100/1000BASE-T ports, two of which are combo ports that are shared with two SFP transceiver slots. The IEEE 802.3af Power over Ethernet operates on all 10/100/1000 ports enabling IP phones or cameras to be installed without the need for extra power cables. Also it is comes installed with clustering software which will enable grouping together of up to 32 of other SMC6100 and SMC8100 switches.
