Data transmission
| MAC address table |
8192 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
52 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Number of VLANs |
255 |
Other features
| Connectivity LEDs |
Y |
| Installed ports |
26 |
| Remote administration |
Y |
| Expansion slots |
4 x SFP |
| Input frequency |
47 - 63 Hz |
| Power LED |
Y |
| Wi-Fi |
N |
| Power supply type |
AC/DC |
Networking
| Port mirroring |
Y |
| IGMP snooping |
Y |
| Link aggregation |
Y |
| Full duplex |
Y |
| Spanning tree protocol |
Y |
| 10G support |
N |
Power
| Number of power supply units |
1 |
| Input voltage |
100 - 240 V |
Security
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
Ports & interfaces
| Console port |
RS-232 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| SFP module slots quantity |
4 |
| DC-in jack |
N |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| SFP/SFP+ slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
4 |
Performance
| Packet buffer memory |
0.512 MB |
| Firmware upgradeable |
Y |
| Stackable |
Y |
Design
| Safety |
UL, CB, CSA |
| Form factor |
1U |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Operational conditions
| Operating temperature (T-T) |
32 - 122 °F |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

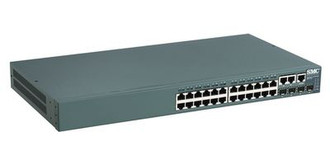

SMC8126L2 TigerSwitch, 26-port, 10/100/1000, Managed Switch with IP Clustering and 4 Gigabit Combo Ports
The SMC8126L2 is a feature-rich 10/100/1000BASE-T standalone managed switch. This gigabit edge switch is designed to handle high bandwidth applications and capable of reaching up to 52Gbps with a non-blocking single chip switching architecture. The switch includes IP Clustering supporting up to 32 units from both the SMC61xxL2 and the SMC81xxL2 families. This enables single IP management across the network increasing management efficiency. It also provides cost-effective, gigabit ethernet switching for bandwidth-intensive networks that require advanced switching features: Quality of Service (QoS) with four levels of priority, weighted fair queuing and L2/3/4 IP. With these features the SMC8126L2 switch ensures smooth transmission of mission critical data; VLANs based on frame tags, ports or protocol, support for automatic GVRP LAN registration and Multiple Spanning Tree provides maximum security and bandwidth efficiency. The comprehensive security features include RADIUS, IEEE802.1x, SSH, SSL,TACACS+, and ACL. High port -density and 1U high, this switch is ideal for SMB and enterprise workgroup installations.
