Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
20 Gbit/s |
| Number of VLANs |
4000 |
| Number of queues |
8 |
| Maximum data transfer rate |
1 Gbit/s |
Other features
| Authentication method |
MAC, Web |
| Power LED |
N |
| Wi-Fi |
N |
| Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Networking
| Port mirroring |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| IP routing |
Y |
| Spanning tree protocol |
Y |
| DHCP client |
Y |
| Broadcast storm control |
Y |
| Link aggregation |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Security
| SSH/SSL support |
Y |
| Static port security |
Y |
| MAC address filtering |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-TX, 10BASE-T |
| SFP module slots quantity |
2 |
| SFP/SFP+ slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
10 |
Performance
| Packet buffer memory |
1 MB |
| Flash memory |
8 MB |
| Stackable |
Y |
Protocols
| Supported network protocols |
IPv4/IPv6 |
| Management protocols |
SNMP v1, v2c |
Power
| Input voltage |
100 - 240 V |
| Input current |
0.7 A |
Additionally
| Jumbo Frames support |
Y |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
8-Port Gigabit Web Managed Smart Switch @ 2 SFP Uplinks, 100/1000BASE-X, IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x

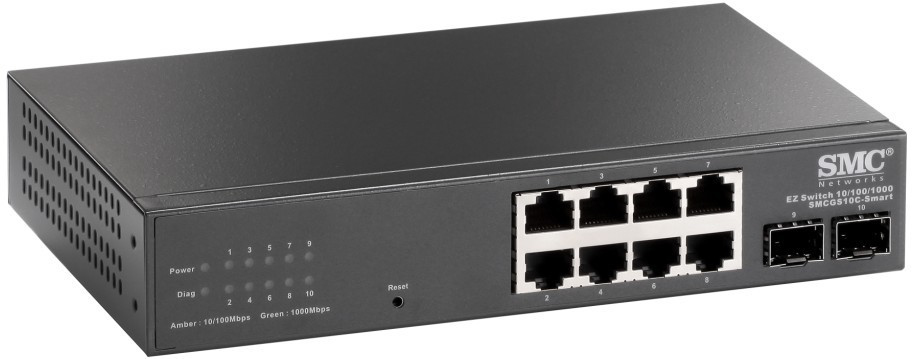

SMC Network’s EZ Switch 10/100/1000 SMCGS10C-Smart is a 10-port Gigabit Ethernet switch providing 8 Gigabit ports and 2 100/1000BASE-X SFP uplink slots. This web-managed smart switch provides 20 Gbps wire-speed switching performance across all 10 ports. This enables the switch to fully support existing high-performance PCs and laptops, which significantly improves application response times and the speed of large file transfers. The switch supports a flexible web-based management interface as well as SNMP for both IPv4 and IPv6. The new SMCGS10C-Smart provides a range of feature-rich functions, including VLANs, Spanning Tree, link aggregation, multicast filtering, security, storm control, and QoS with 8 priority queues. Ideal for users looking to migrate from unmanaged to managed networks, this switch is easy to install and perfect for SMB and SOHO applications.
