Technical details
| Number of processors installed |
1 |
| Number of simultaneous SIM cards |
2 |
| Memory and processor |
Broadcom BCM2835 ARM11, 512 MB SDRAM |
| Antenna type |
Omnidirectional |
| Antenna gain level (max) |
3.5 dBi |
| Antenna connector type |
SMA-J |
| Built-in processor |
Y |
| Processor frequency |
700 MHz |
Memory
| Flash memory |
4000 MB |
| Internal memory |
512 MB |
Networking
| GSM bands supported |
850, 900, 1800, 1900 MHz |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Power
| Input frequency |
50/60 Hz |
| Input voltage |
100 - 240 V |
Packaging content
| Quick installation guide |
Y |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
2x Omnidirectional 3.5dBi GSM, ARM11 0.7 GHz, 4 GB, UMTS/GSM/GPRS, 2x SIM, RTC 240B SRAM, 35 x 120 x 101 mm, 350 g, Linux kernel 4.1

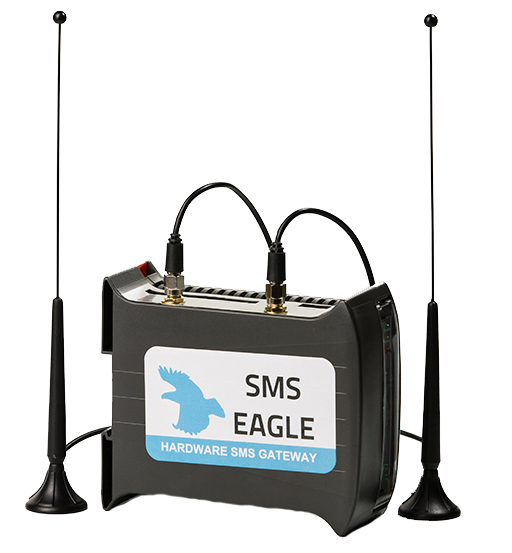

SMSEagle is a professional hardware SMS gateway for sending and receiving SMS messages in an automated manner. The device is designed with focus on reliability and stability. It has a Linux on-board, modern responsive web-interface, database backend, and built-in 3G modems with watchdog mechanism. The device can be configured for failover (HA cluster).
Thanks to a built-in 2 x 3G modem, SMS messages are sent/received directly to/from GSM/UMTS network without using any external 3rd party solutions, and with double speed. The device is equipped with external antennas with 3.5dBi gain – important especially in poor signal reception conditions (eg. Server rooms). SMSEagle has a built-in SQL database for secure storage of messages. Built-in SNMP agent allows to monitor performance of the SMSEagle. The device has built-in plugins that enable additional functionalities and easy to use HTTP API for integration with external applications.
