Other features
| Management platform |
GuardianOS, Windows, Linux, UNIX |
| Networking features |
Dual-Gigabit |
Power
| Power supply unit (PSU) capacity |
400 W |
Storage
| Number of storage drives installed |
4 |
| Total installed storage capacity |
1000 GB |
| Storage drive capacity |
250 GB |
Processor
| Processor frequency |
1 GHz |
Networking
| Supported network protocols |
TCP/IP, UDP/IP, Appletalk |
Storage performance with flexible capacity expansion

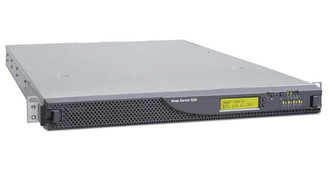

The Adaptec Snap Server 520 combines best-in-class performance with optional capacity expansion that helps you maximize your storage budget. Built on 64-bit AMD Opteron™ architecture, the Snap Server 520 with GuardianOS software provides fast throughput for data protection applications. With legendary Snap Server ease of use and operation, an integrated suite of data protection software, and scalability to 66TB, it is ideal for any size company that needs cost-effective, yet scalable data storage for its growing business.
Highlights:
-Availability features include optional dual hot-swappable power supplies, hot-swappable SATA II drives, and dual gigabit Ethernet ports with Ethernet teaming for load balancing and port failover.
-On-the-fly scalability with Instant Capacity Expansion (I.C.E)™.
-The fastest random data access speeds in its class for high-performance data protection.
-Easy management and cross-platform file sharing out of the box.
-Unified block and file architecture.
-Integrated BakBone NetVault with upgraded 500GB Virtual Tape Library license.
Network Block Protocols:
-iSCSI target support.
-Snap Servers running GuardianOS v3 SP1 or higher.
-iSCSI software initiator support.
-Windows: Microsoft iSCSI Initiator v1.03, v1.04.
-Solaris: Cisco SN 5400 Series iSCSI Driver v3.3.5.
-Linux: UNH-iSCSI Initiator v1.5.3.
-iSCSI hardware initiator support.
-Adaptec 7211C (copper) HBA.
-Intel PRO/1000T IP Storage Adapter v2.0, 2.1.
-Alacritech SES1001 iSCSI HBA Adapter.
Network Security:
-CA eTrust Antivirus software.
-Microsoft Active Directory Service (ADS Member Server).
-Kerberos Authentication v5.
-CHAP Authentication (iSCSI target level).
-Microsoft Lightweight Directory Access Protocol (LDAP v3 client).
-Windows NT Domain (member server).
-UNIX Network Information Service (NIS) Support.
-File and Folder Access Control List (ACL) Security for Users and Groups
-Secure Sockets Layer (SSL) v2/3 128-bit encryption.
-Transport Layer Security (TLS) v1.
Data Protection:
-RAID 1, 0, 5.
-Integrated snapshot technology.
-Optional Snap EDR enterprise-class replication software.
-Optional S2S v2 entry-level replication software.
-Local backup: Integrated BakBone NetVault Workgroup Edition.
-Network backup: Supports VERITAS NetBackup/Backup Exec, CA BrightStor ARCserve/Enterprise, Legato NetWorker, BakBone NetVault, Microsoft Backup Software for Windows 95, 98, Me, NT, 2000, XP, and NDMP v2, v3, v4. Compatible with Dantz Retrospect for Macintosh.
-UPS Support: APC brand UPS with Network Management cards are supported for graceful shutdown.
