Design
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Display |
LCD |
Power
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
161 V |
| Emergency Power Off (EPO) |
Y |
| Power supply input frequency |
50/60 Hz |
| Output power capacity |
1700 VA |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Output power |
1350 W |
Ports & interfaces
| AC outlet types |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| Power plug |
C14 coupler |
| AC outlets quantity |
8 AC outlet(s) |
Battery
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
6 min |
| Typical backup time at full load |
6 min |
Certificates
| Safety |
EN 62040-1, AS 62040-1 |
| Certification |
CE, C-Tick |
Weight & dimensions
| Depth |
436 mm |
| Weight |
18000 g |
| Width |
440 mm |
| Height |
87 mm |
Performance
| Cooling type |
Active |
| Power protection features |
Overload, Short circuit |
| Surge protection features |
Network |
| Automatic Voltage Regulation (AVR) |
Y |
Additionally
| Colour of product |
Grey |
| RS-232 port |
1 |
| Ethernet LAN (RJ-45) ports quantity |
2 |

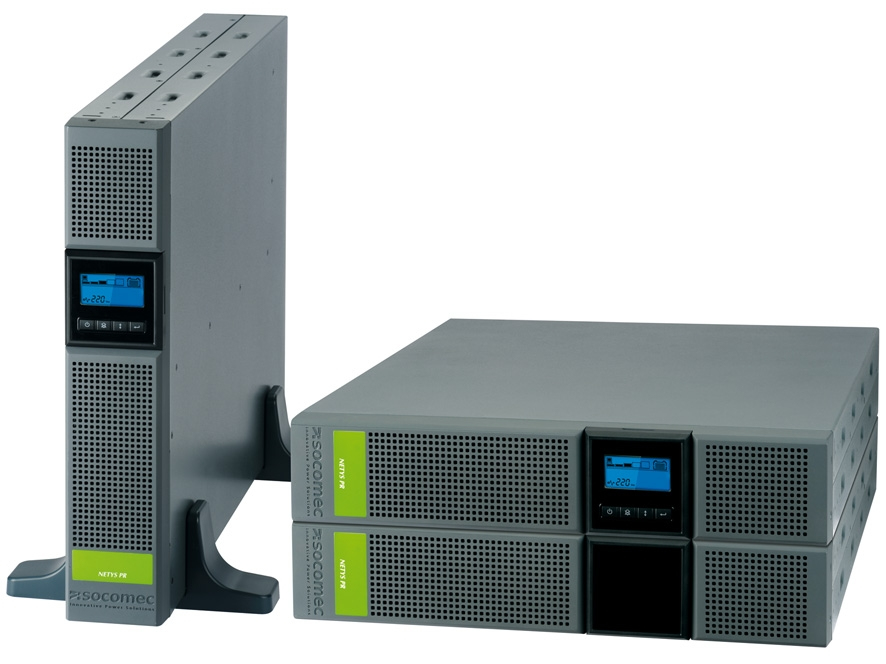

NETYS PR RT 1700VA
A secure and professional supply continuity.
- Ideal solution for protecting small servers, networking devices and peripherals.
- Assures service continuity to critical applications.
- Designed for professional applications: the sinevawe inverter technology assures full compatibility with any kind of load and power supply.
Tailored to IT networking.
- The space and time-saving tower/rack conversion option means it can be installed easily either in tower mode or inside standard 19” rack cabinets depending on the user’s needs.
Simple to install.
- No configuration needed on first startup.
- Compact footprint (2U/89 mm) for installation in rack cabinets.
- Attractive design for visible installation in offices.
- USB port and HID protocol as standard for direct interfacing with Windows systems®, without the need for additional specialist software.
Protection for your data line.
- Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage.
Meets practical needs.
- Optional battery extension modules (EBM) to meet all back-up time requirements, even after installation.
- Clear and uncluttered LCD interface, with buzzers that immediately indicate the operating status of the UPS, even for less specialist users.
- Simplified maintenance and Battery `hot swap’, without closing down other applications.
Easy to use and to integrate.
- Wide range of communication protocols available in options (including JBUS, TCP/ IP and SNMP) for integration into LAN networks or building management systems (BMS) · Easy connections to the applications (depending on power) via 8 or 8+1 IEC 320 (IT standard) sockets.
- Load segmentation function to prioritize loads and manage critical situations.
- EPO (Emergency Power Off) emergency stop.
- RS232 advanced connections for the management of the power supply and local/ remote shutdown of applications.
