Performance
| Waveform |
Sine |
| LED indicators |
Y |
| Noise level |
50 dB |
| UPS topology |
Double-conversion (Online) |
| Cooling type |
Active |
Design
| Rack capacity |
2U |
| Form factor |
Tower |
| Display |
LCD |
Power
| Input operation voltage (max) |
230 V |
| Input operation voltage (min) |
175 V |
| Efficiency |
93% |
| Emergency Power Off (EPO) |
Y |
| Maximum current |
16 A |
| Power supply input frequency |
50/60 Hz |
| Input current THD |
5% |
| Output power capacity |
1700 VA |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Input power factor |
0.99 |
| Output power factor |
0.9 |
| Output power |
1350 W |
Ports & interfaces
| AC outlet types |
C13 coupler, C19 coupler |
| Modem (RJ-11) ports |
1 |
| Serial interface |
Y |
| USB port |
Y |
| Serial interface type |
RS-232 |
| Power plug |
C20 coupler |
| AC outlets quantity |
6 AC outlet(s) |
| Emergency Power Off (EPO) connector |
Y |
Battery
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Battery voltage |
48 V |
Operational conditions
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-15 - 50 °C |
Certificates
| Safety |
IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2 |
| Certification |
CE, RCM (E2376) |
Weight & dimensions
| Depth |
430 mm |
| Weight |
18000 g |
| Width |
89 mm |
| Height |
440 mm |
Additionally
| Colour of product |
Grey |
| RS-232 port |
1 |
| Operating temperature range (T-T) |
0 - 40 °C |

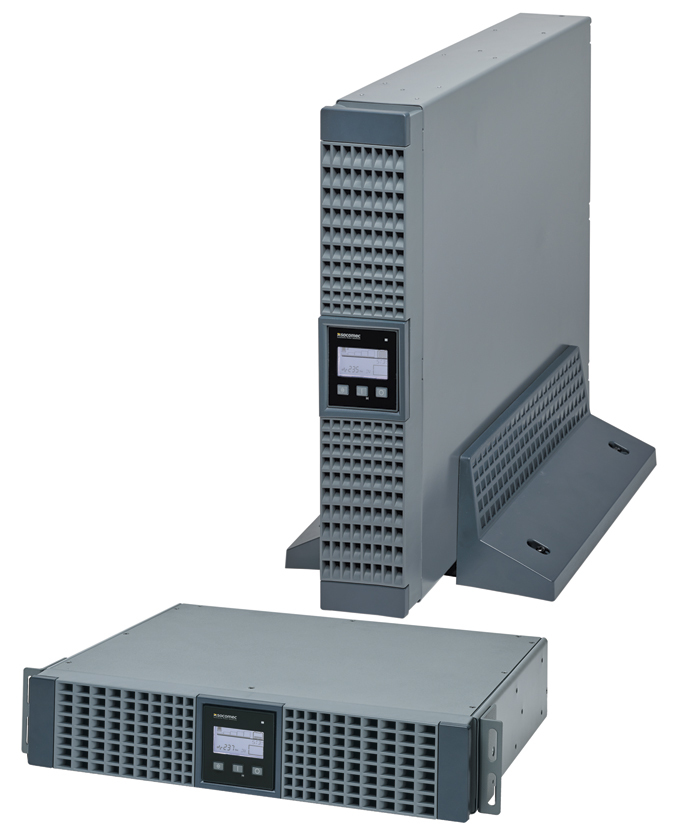

1700 VA, 6 x IEC 320-C13 + 1 x IEC 320-C19, IEC 320-C20, IP20, RS-232, USB, RJ-11, 2U, Rail Kit included, Grey
The solution for
- Switching
- Storage
- Servers and networking devices
- VoIP communication systems
- Structured cabling systems
- Control systems
- Video surveillance systems
Advantages
High protection and availability
- Online double conversion technology with sinusoidal waveform.
- Permanent regulation of output voltage and frequency.
- Wide tolerance of the input voltage.
Simple to install
- No configuration necessary on first startup.
- Conversion mode for installation either in tower mode or inside standard 19“ rack cabinets.
- IEC input and output connections (1100‑3300 VA) or terminal input and output connections with built‑in magnetothermal input switch (5000‑11000 VA).
- Compact footprint.
Easy to use
- Clear and uncluttered SOCOMEC LCD interface.
- Wide range of communication protocols for integration into LAN networks or Building Management Systems (BMS).
- Load segmentation function to prioritize loads and manage critical situations.
- EPO (Emergency Power Off) emergency stop.
- Management of power supply and local / remote shutdown of the applications.
Meets practical needs
- Modular battery extension (EBM) to meet all back‑up time requirements, even after installation.
- 1+1 parallel redundant configuration (5000‑11000 VA).
